New features of the 2020.e version

INDEX


New programs



New features of existing programs


New programs

Open BIM Kaysun

Open BIM Kaysun

"Open BIM Kaysun" is a free tool that has been developed to analyse and design VRF (Variable Refrigerant Flow) air conditioning installations and has been conceived to perform a realistic design of a VRF installation in a 3D environment.

"Open BIM Kaysun" checks that the system is connected correctly; it selects the model of the equipment that is capable of supplying the thermal loads of the spaces, calculates the corrected power depending on the design conditions, selects the diameters of pipes and branches, measures all the elements of the project and compiles them in a document with the quantities, and generates the diagram of the installation.

"Open BIM Kaysun" provides a report with the calculations that have been carried out, the VRF diagram, project quantities in FIEBDC-3 (.bc3) format and a report with the material schedule.

More information.

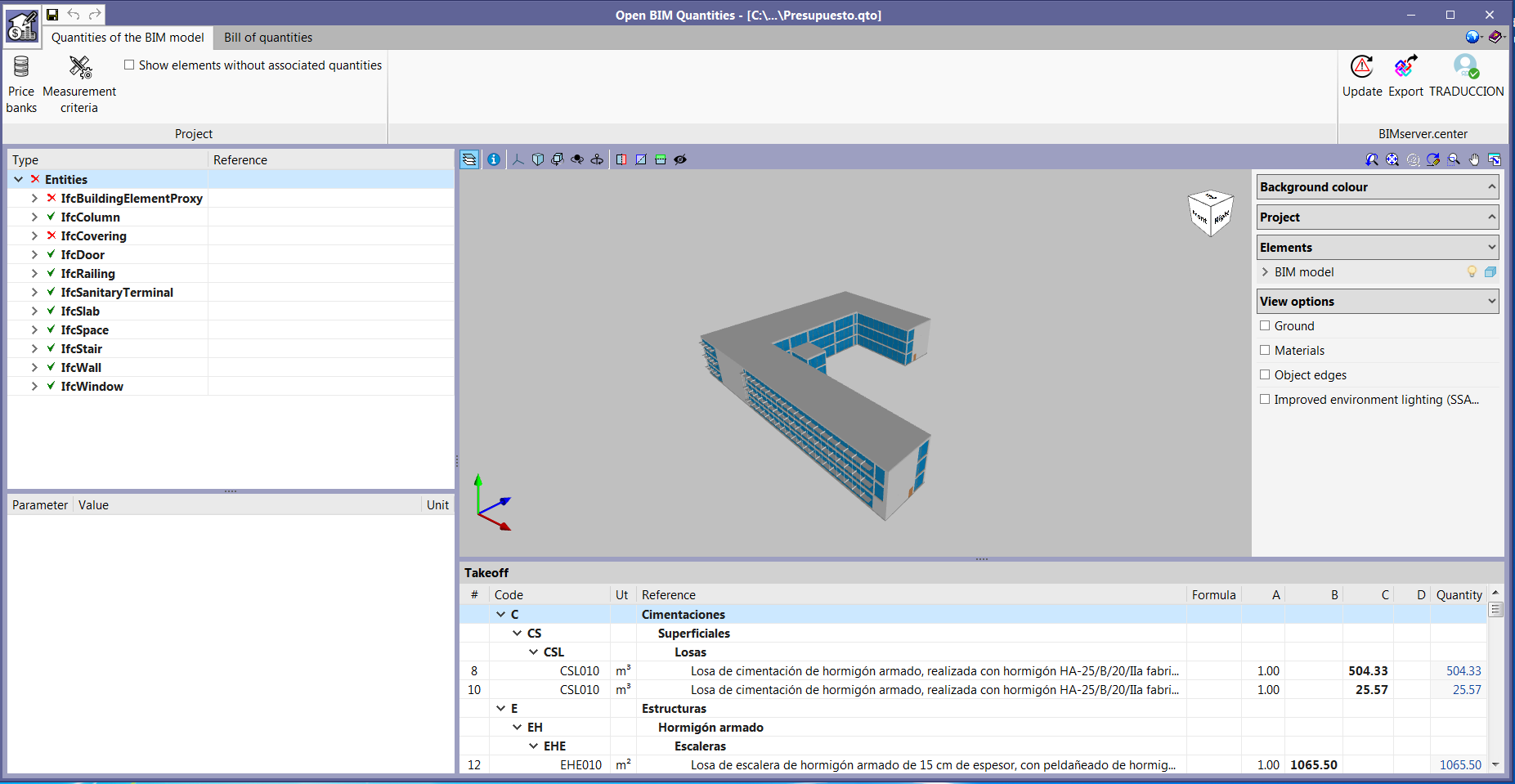

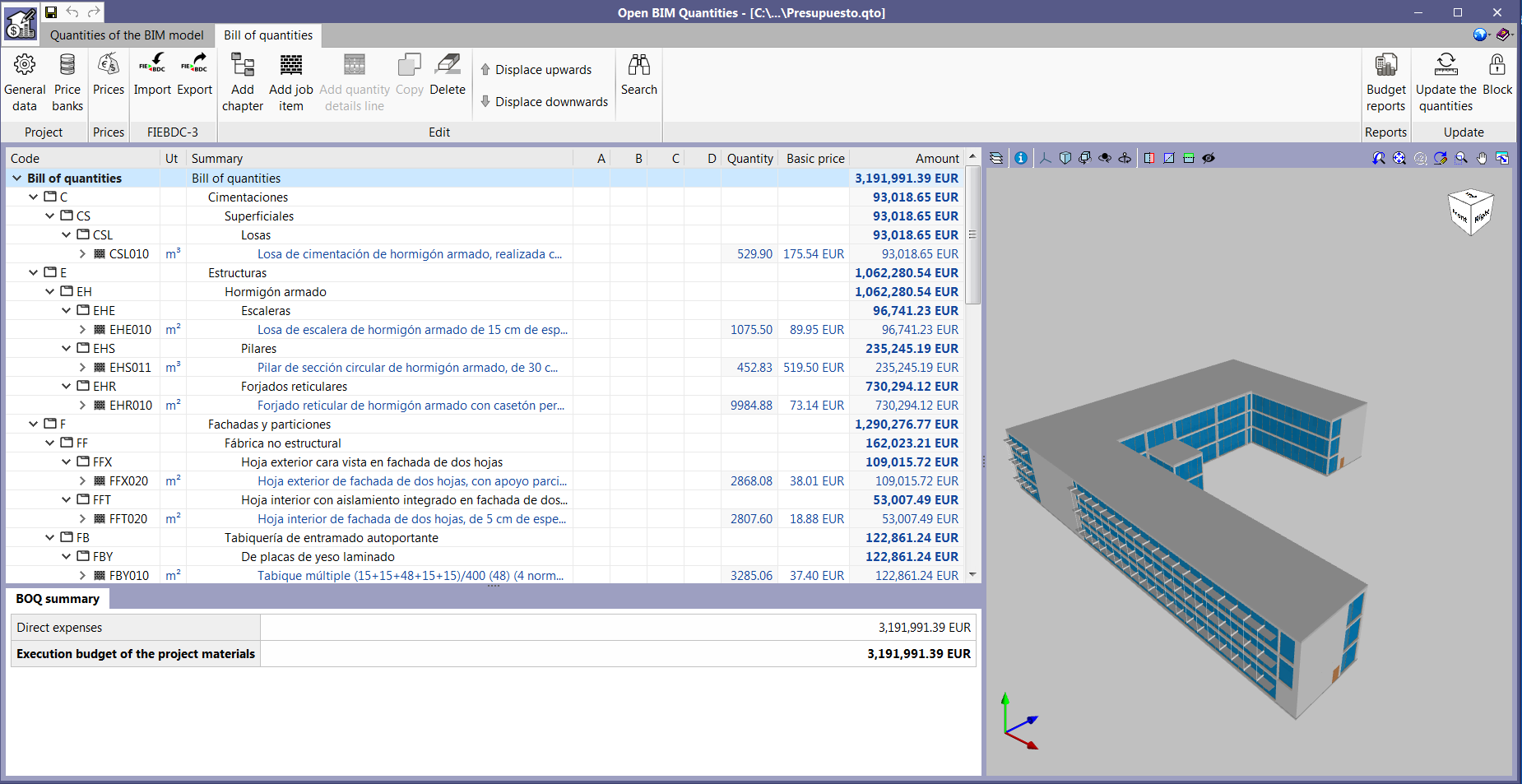

Open BIM Quantities

Open BIM Quantities

Open BIM Quantities

"Open BIM Quantities" is a tool destined to create bills of quantities based on BIM models that have been defined using the IFC standard. This application is integrated into the Open BIM workflow via the BIMserver.center platform.

"Open BIM Quantities" can read the properties and quantities that are contained in the IFC entities that make up the Open BIM model of the building. Users can establish the sets of measurement rules they wish in order to transform the data that is contained in the elements of the model into real items for the bill of quantities. These sets can be saved to be used in other projects.

The items that are then obtained from the BIM model can be linked to concepts of a cost database.

Users can create their own cost databases or import them from databases in FIEBDC-3 format (such as CYPE's cost database Generador de precios).

The program allows users to edit the final result of the quantities and bill of quantities and print reports containing the information that has been generated.

"Open BIM Quantities" also offers users the possibility to export the bill of quantities to FIEBDC-3 format to be used by other cost management programs such as Arquimedes.

More information.

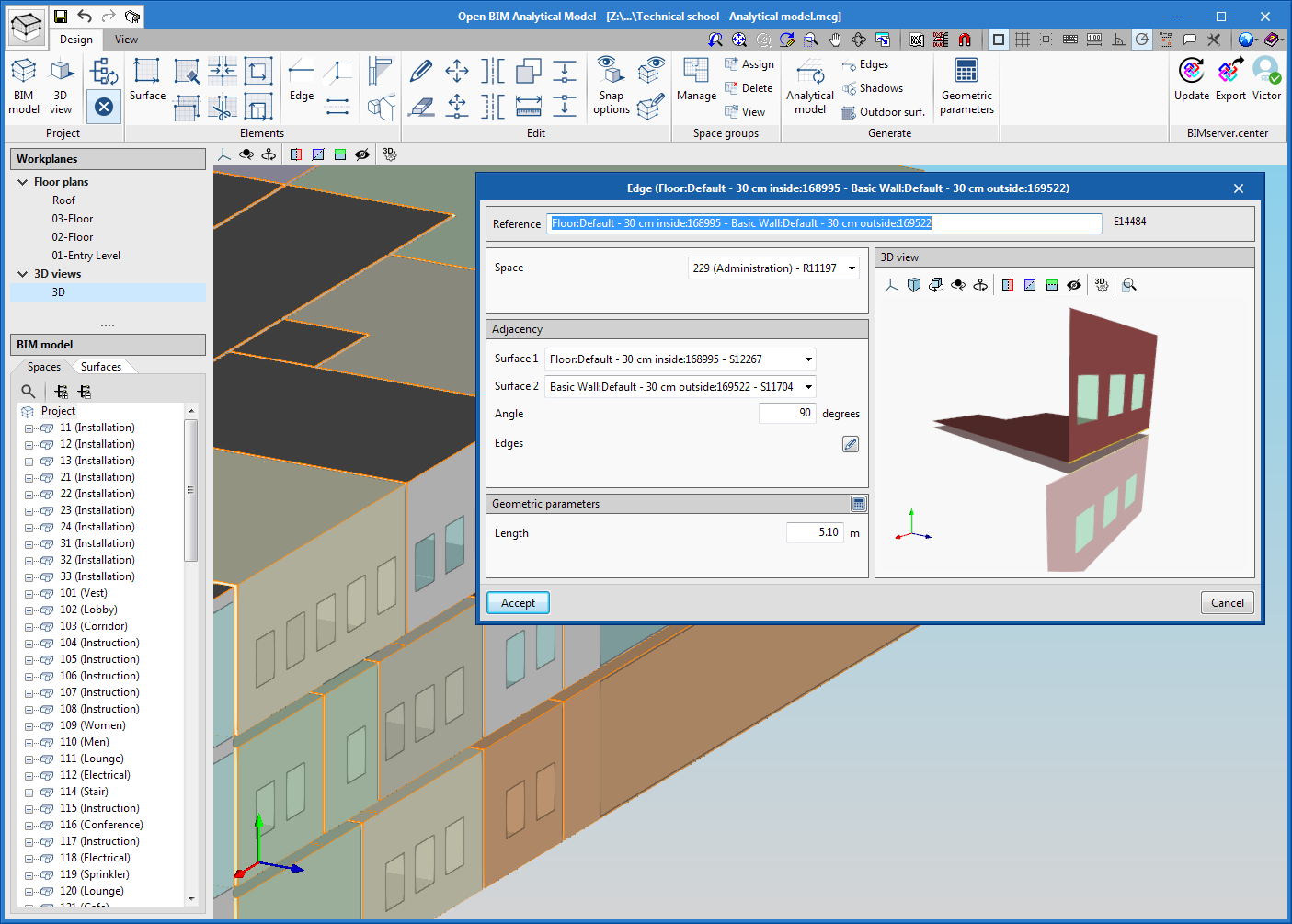

Open BIM Analytical Model

Open BIM Analytical Model

Open BIM Analytical Model



"Open BIM Analytical Model" is an application developed to generate analytical geometric models of buildings in order to carry out their energy and acoustic analysis.

The programme allows users to enter all the elements that make up the analytical model, such as spaces, surfaces, edges, joints etc. It is also possible to indicate the existing relationships between these entities (which spaces they belong to, adjacencies between surfaces, edges that form a joint etc).

If there is a BIM project located on the BIMserver.center platform that has an architectural model, "Open BIM Analytical Model" allows specialist users to make use of the automatic generation process and modify the elements they consider necessary to adapt them to their needs.

In order to take into account the different thermal and acoustic requirements, the application allows users to define different space groups for the same analytical model (for example, a group depending on use units and another depending on thermal zone criteria).

The defined analytical model can be exported to the Open BIM project that is located on the BIMserver.center platform, which can then be interpreted and imported by Open BIM applications that are dedicated to the thermal and acoustic analysis of buildings.

More information.

StruBIM Uploader

StruBIM Uploader

"StruBIM Uploader" is an application that has been developed by CYPE, with which structural models can be incorporated into Open BIM projects that are located on the BIMserver.center platform, and this way enabling a connection with visualization, analysis and post-processing programs of other developers.

In its first version, "StruBIM Uploader" allows users to incorporate models, which have been generated in the following formats by structural design programs, into Open BIM projects, including their design results:

  • IFC produced with Advance Design®
  • XML produced with ETABS®



More information.



CYPEDOC CTE HS 6

CYPEDOC CTE HS 6

CYPEDOC CTE HS 6 (Protection against radon exposure)



"CYPEDOC CTE HS 6" is an application that has been designed to justify that the requirements of the "CTE DB HS 6: Protection against radon exposure" code are met. To do so, the following protection systems can be defined: Protection barriers, Ventilated air cavities and Ground depressurization.

CYPEDOC CTE HS 6 generates the justification report of CTE DB HS 6, including a results annex with all the systems that have been installed in each space that is in contact with the ground.



More information (Spanish).



CYPEDOC CTE HS 6. Protection against radon exposure CYPEDOC CTE HS 6. Protection against radon exposure



New features of existing programs

New features common to several programs

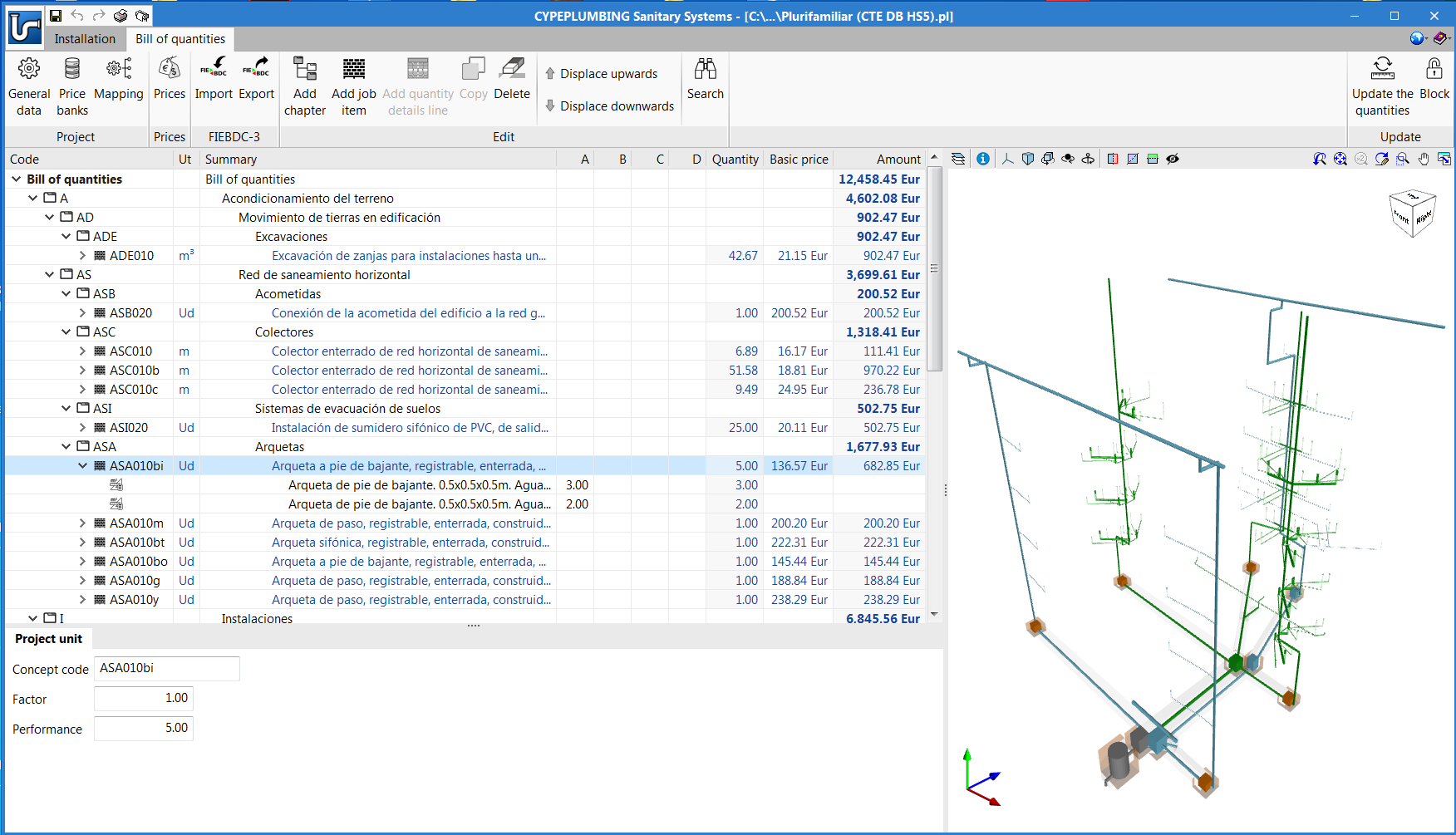

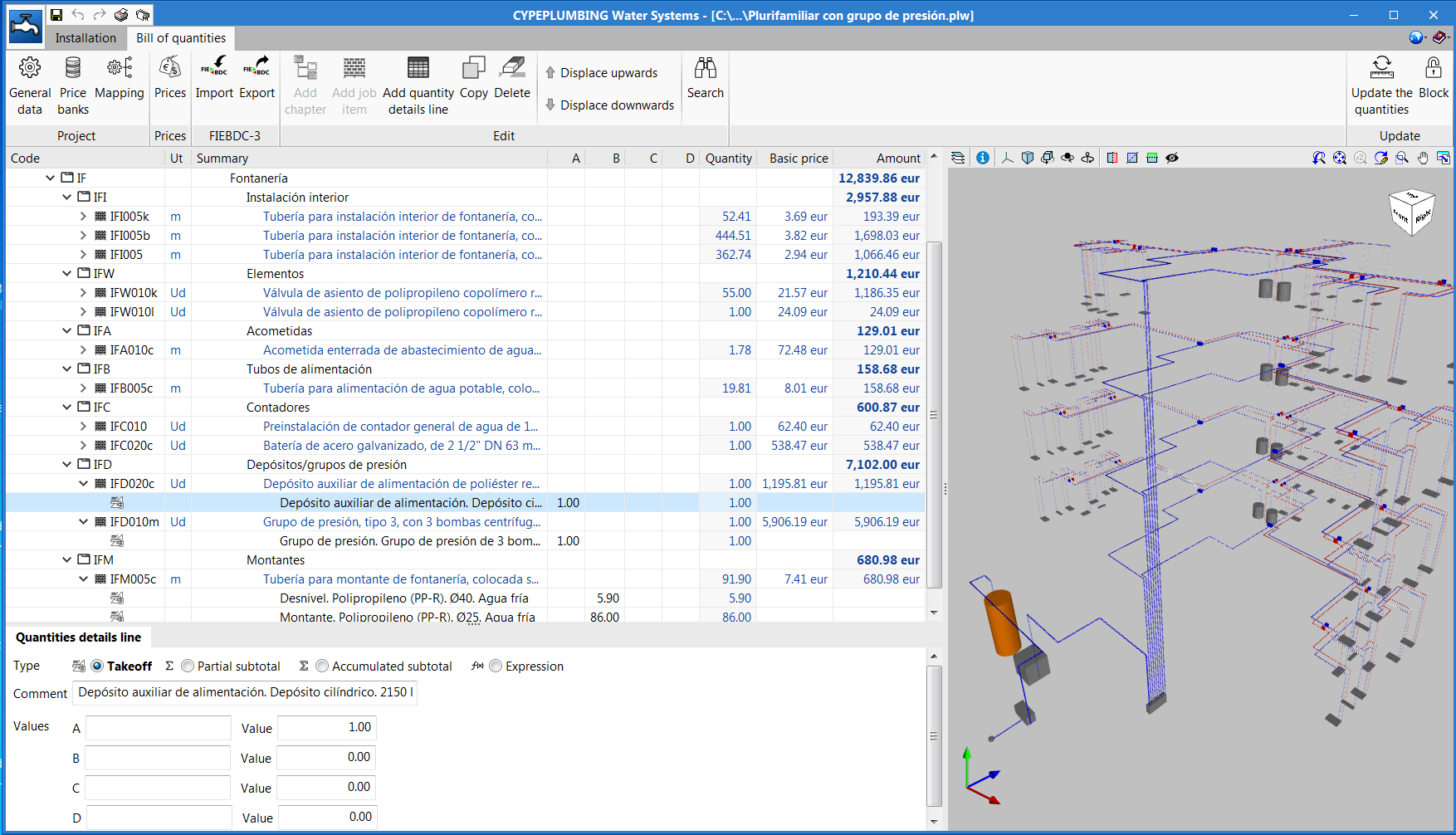

"Bill of quantities" tab in project phase Open BIM applications

"Bill of quantities" tab in the project phase of Open BIM applications

"Bill of quantities" tab in the project phase of Open BIM applications

The "Bill of quantities" tab has been added to the toolbar of some of the applications that are integrated in the Open BIM workflow. In the 2020.e version, the first Open BIM programs to have this tab are:

  • Open BIM Quantities (new program of the 2020.e version)
  • Open BIM Accessibility
  • Open BIM Lightning
  • CYPEPLUMBING Sanitary Systems
  • CYPEPLUMBING Water Systems
  • CYPEPLUMBING Solar Systems
  • CYPEFIRE Hydraulic Systems
  • CYPEHVAC Hydronics
  • CYPEHVAC Ductwork

This tab will be integrated into the remaining Open BIM applications in upcoming versions.

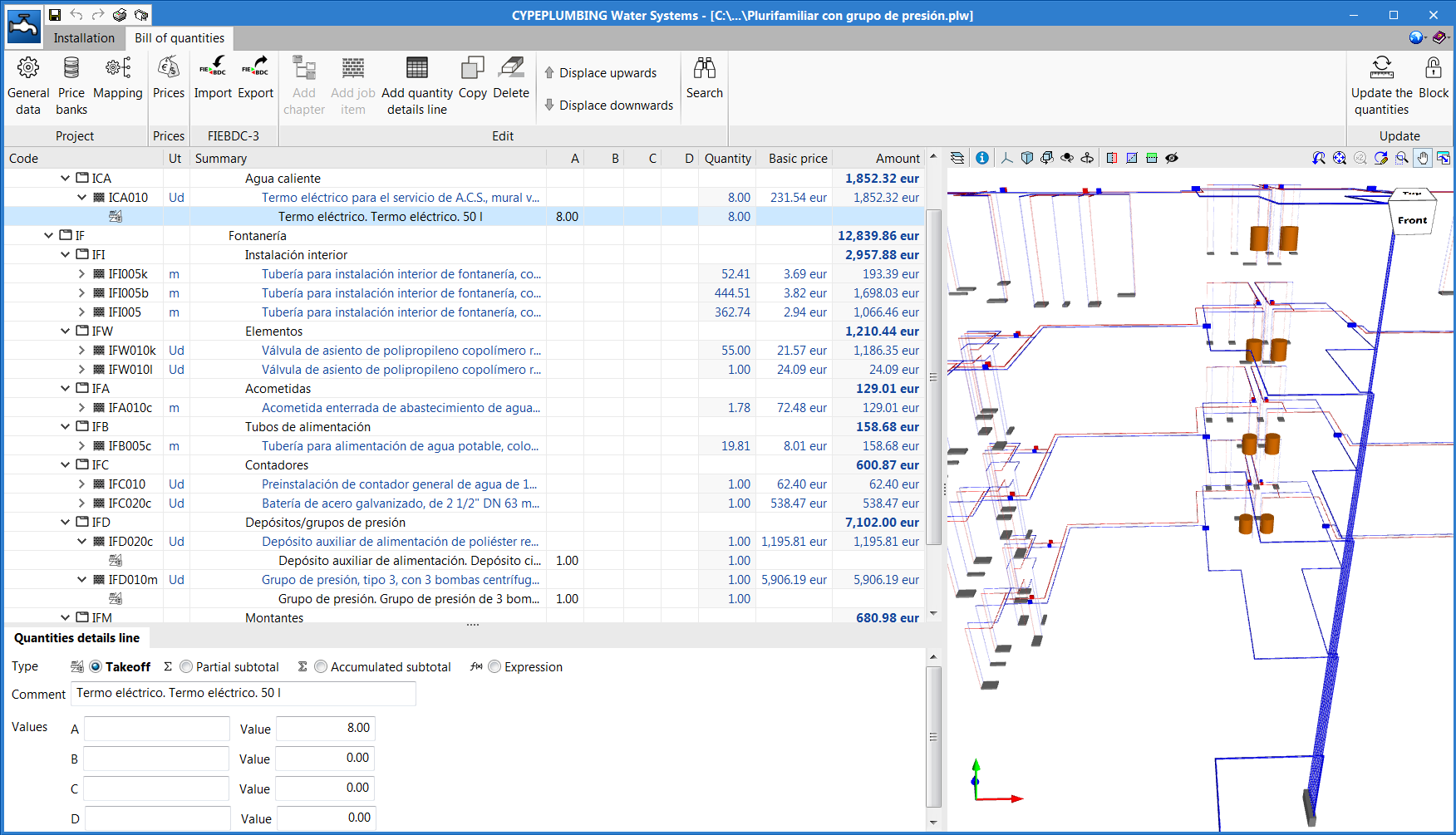

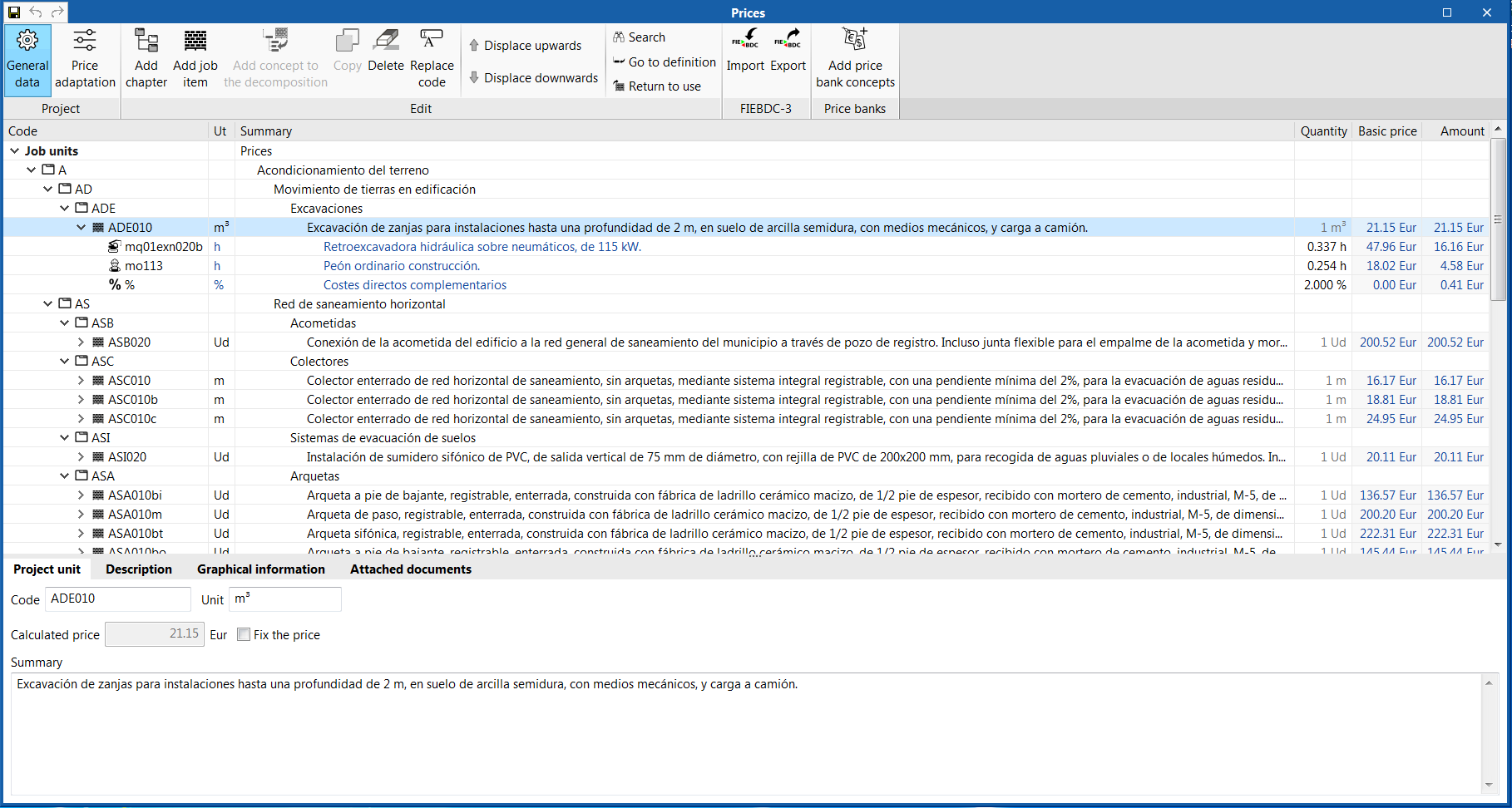

"Bill of quantities" tab in the project phase of Open BIM applications

"Bill of quantities" tab in the project phase of Open BIM applications

"Bill of quantities" tab in the project phase of Open BIM applications

"Bill of quantities" tab in the project phase of Open BIM applications

The "Bill of quantities" tab provides users with tools to generate and manage the bill of quantities of the installation that each program analyses. Within this tab, users can extract the quantities of the model and, based on that information, generate the real project items. This process is carried out using a correspondence system between the elements that have been measured in the design model and the concepts of the bill of quantities (mapping). This equivalence is stored on a local drive or network, so that it can be extended progressively and used in future projects.

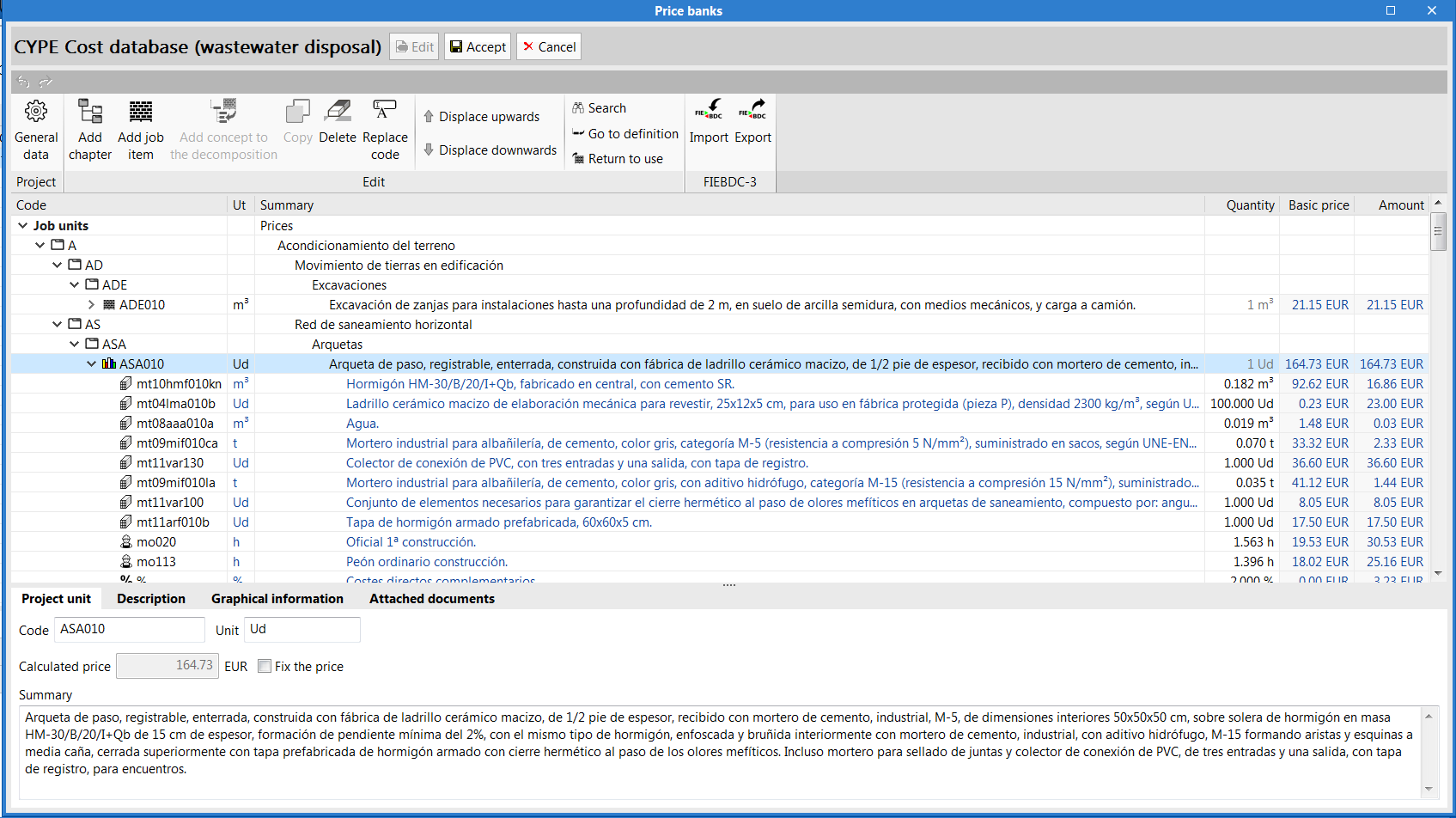

In order to enter project prices easily, users can import complete databases as well as individual concepts from cost databases that have been developed in accordance with the FIEBDC-3 standard (.bc3), such as CYPE's Construction Price Generator.


A cost database and mapping example have been included for installation elements for most of the programs that have the bill of quantities tab. Remember that they are just examples and you can create your own mappings and cost databases.


The documents of the bill of quantities can be extracted in several types of reports (Quantities, Cost breakdown structure, Priced bill of quantities, Detailed priced bill of quantities, BoQ summary) and can be exported in HTML, DOCX, PDF, RTF and TXT formats.


The bill of quantities can also be exported, in "FIEBDC-3" format, from the "Bill of quantities" tab of each program, to then be used in cost management programs such as Arquimedes.


The "Bill of quantities" tab is also included in "Open BIM Quantities" (new program of the 2020.e version). Unlike other applications that include the "Bill of quantities" tab, "Open BIM Quantities" allows users to extract the quantities from BIM models that have been defined using the IFC standard (in their "Quantities of the BIM model" tab) . The other programs extract it from the installation that has been introduced in the program itself. Once the quantities have been extracted, the process to generate the bill of quantities in "Open BIM Quantities" is carried out in its "Bill of quantities" tab, as is done with the other Open BIM applications that contain the tab.

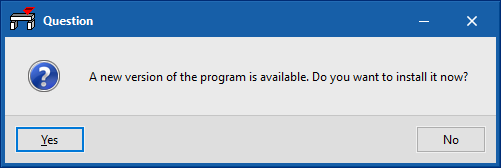

Update notification for CYPE applications that have been downloaded from the BIMserver.center platform

Update notification for CYPE applications

It may occur when users execute a CYPE program from the previous version (2020.d), which was downloaded from the BIMserver.center platform, that a message may appear alerting them that a new version of the program is available and requests if they wish for it to be installed.

If the update process is accepted when a program is executed, it is possible that the message may remain hidden behind the initial program window (project selection). To bring the message to the foreground, close the program, move the program window or change the active window using the "Alt + Tab" key combination.

In future versions, the update message will appear if the version to be updated is 2020.d or later



Open BIM MOVAIR. Parametric catalogue

Open BIM MOVAIR

Parametric catalogue



The manufacturer catalogue has been modified, from a catalogue of a series of parts with specific dimensions to a parametric catalogue where users can enter dimensions of their choice.

Open BIM MOVAIR. Introduction of openings and lids



Introduction of openings and lids



Users can now enter openings and lids on ducts; they can add these elements and this way complete the duct installation.

Modify height

A tool has been added to modify quickly and easily, the height of the position of the ducts that have been entered. Using this option, users can assign a displacement to the ducts with respect to their current position or absolute elevation.

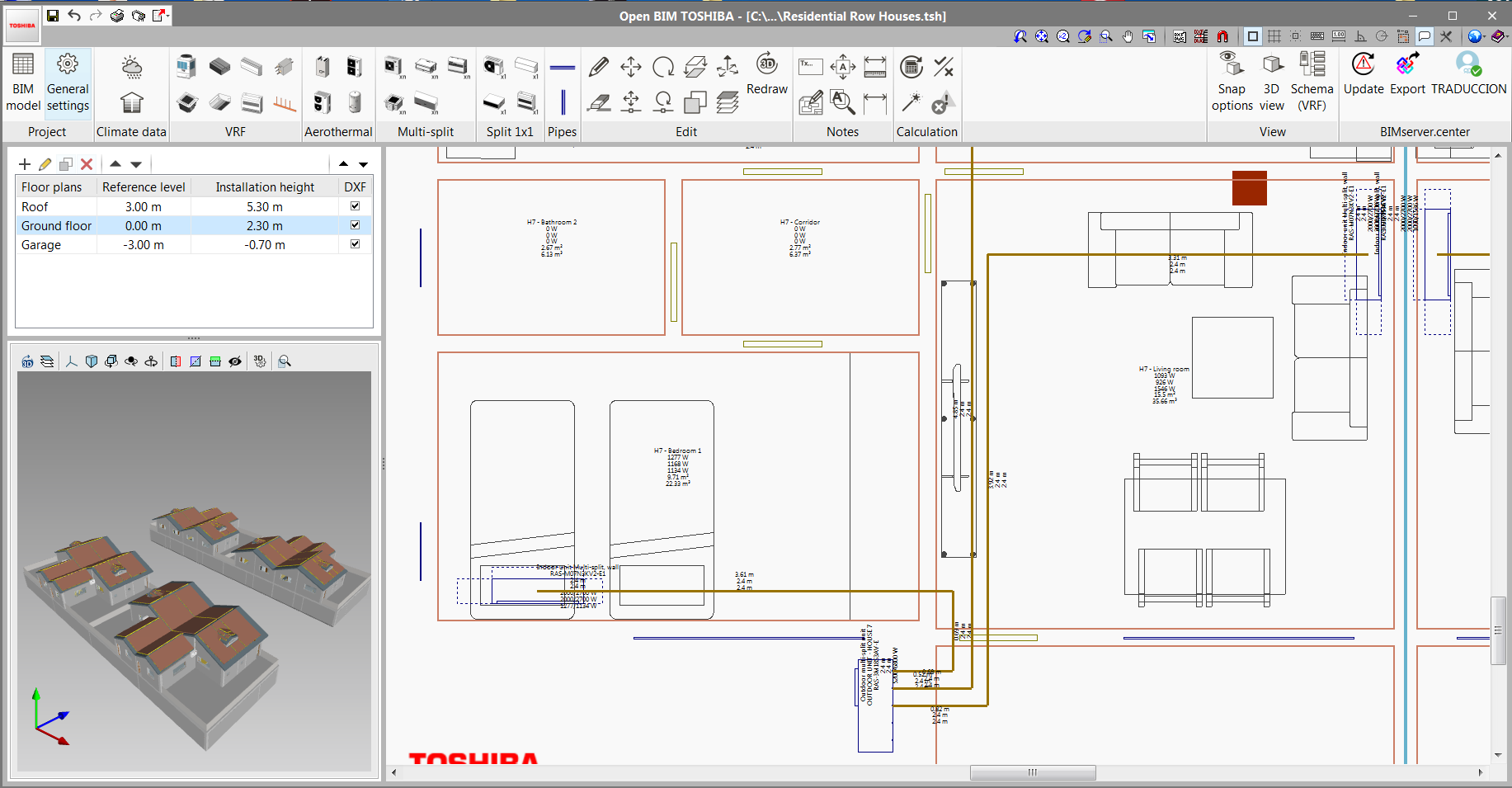

Open BIM TOSHIBA

Open BIM TOSHIBA

Interface renewal



The interface of the application has been renewed.

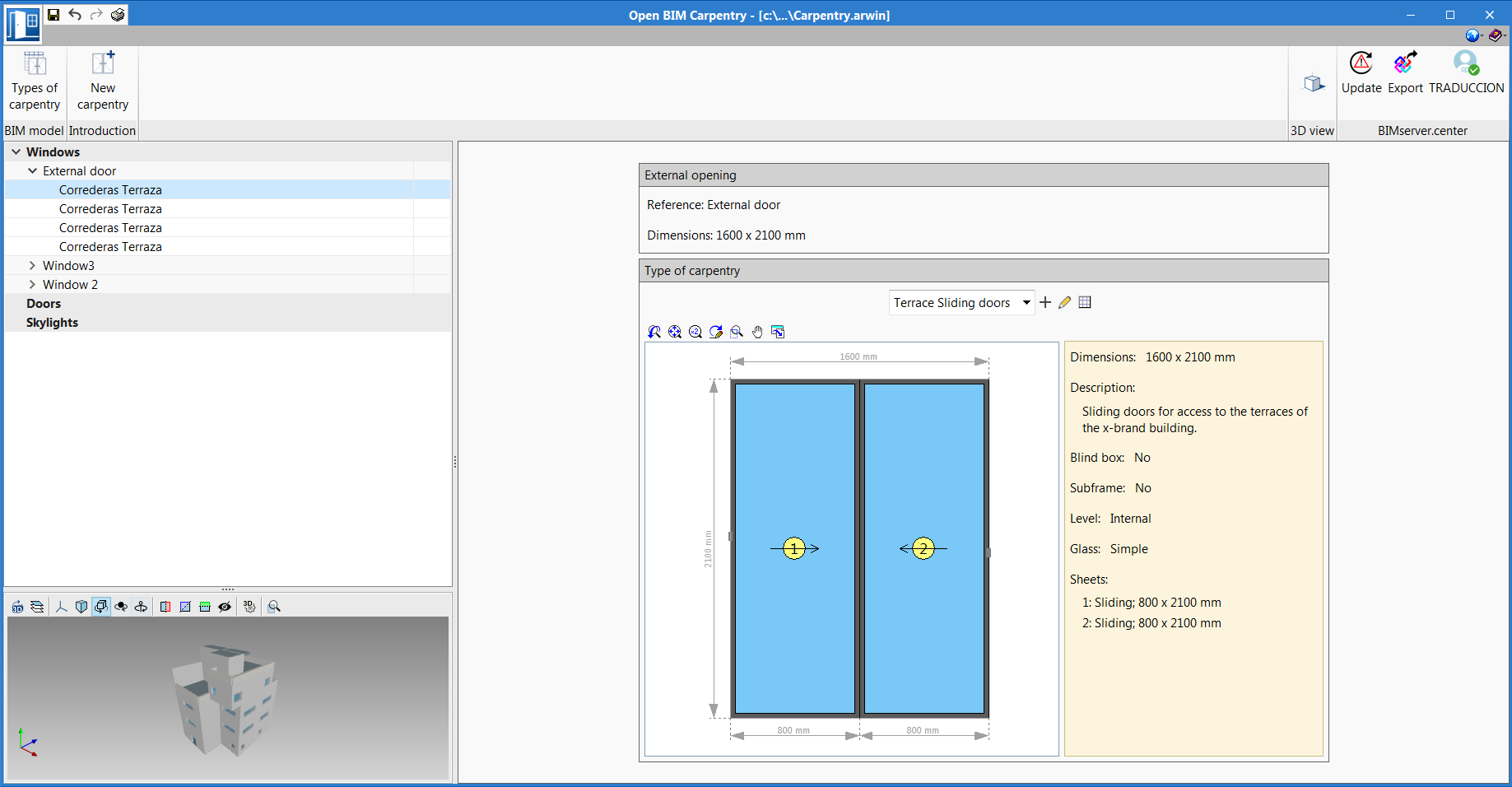

Open BIM Carpentry

Open BIM Carpentry

Organisation of the element panel (windows, doors and skylights)



The side panel containing the elements that are entered in the program (windows, doors and skylights) has been organised. Now, they are grouped by type and subtype in dropdown menus.

Code implementation and improvements in its application

Loads on structures. Wind loads

ASCE/SEI 7-16 (USA)

ASCE/SEI 7-16: Minimum Design Loads for Buildings and Other Structures.

Implemented in CYPECAD.

Loads on structures. Seismic loads

ASCE/SEI 7-16 (USA)

ASCE/SEI 7-16: Minimum Design Loads for Buildings and Other Structures.

Implemented in CYPECAD and CYPE 3D.

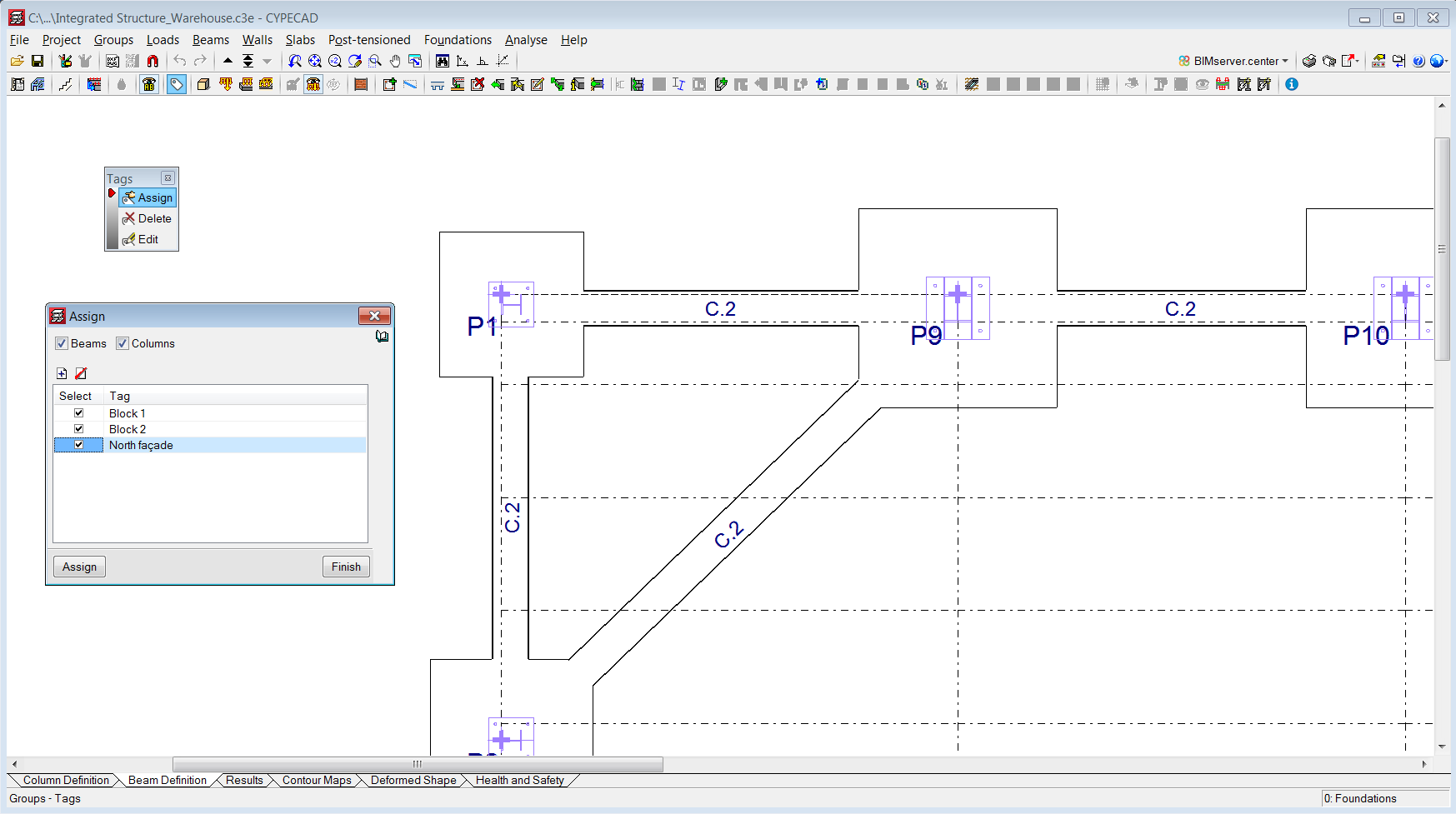

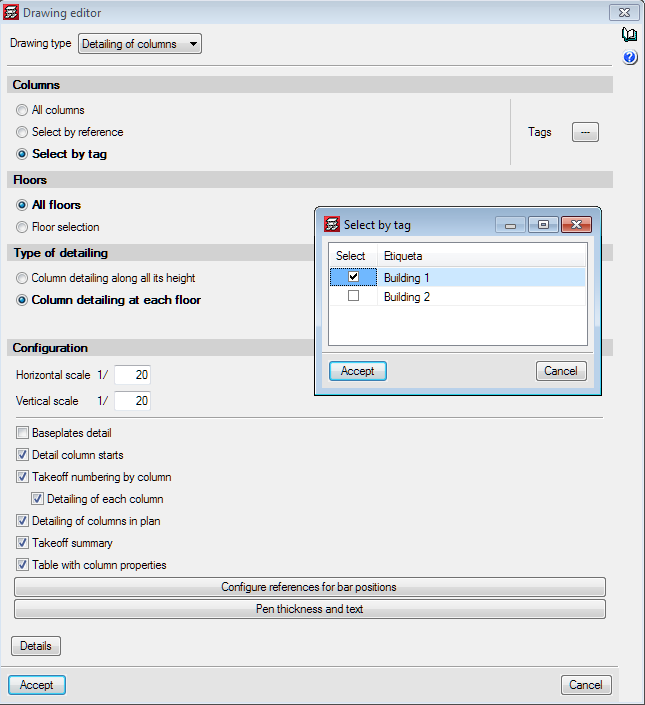

CYPECAD. Column and beam tags

CYPECAD. Column and beam tags

CYPECAD

Column and beam tags



In the 2020.e version, the management of column and beam tags has been implemented. In the portal frames, column detail and column schedule drawings, users can select frames and columns depending on the tags that have been assigned.


Users can access the "Tags" panel from the "Groups" menu in the "Beam Definition" tab, where three options have been implemented:


  • Assign
    Users can assign tags to columns and beams. The list of tags can be managed from this option. Marked tags will be assigned to the elements that have been selected on the current floor.

  • Delete
    Allows users to delete tags that have been assigned to columns and beams. Marked tags will be deleted from the elements that have been selected on the current floor.

  • Edit
    Allows users to edit tags that have been assigned to an element.

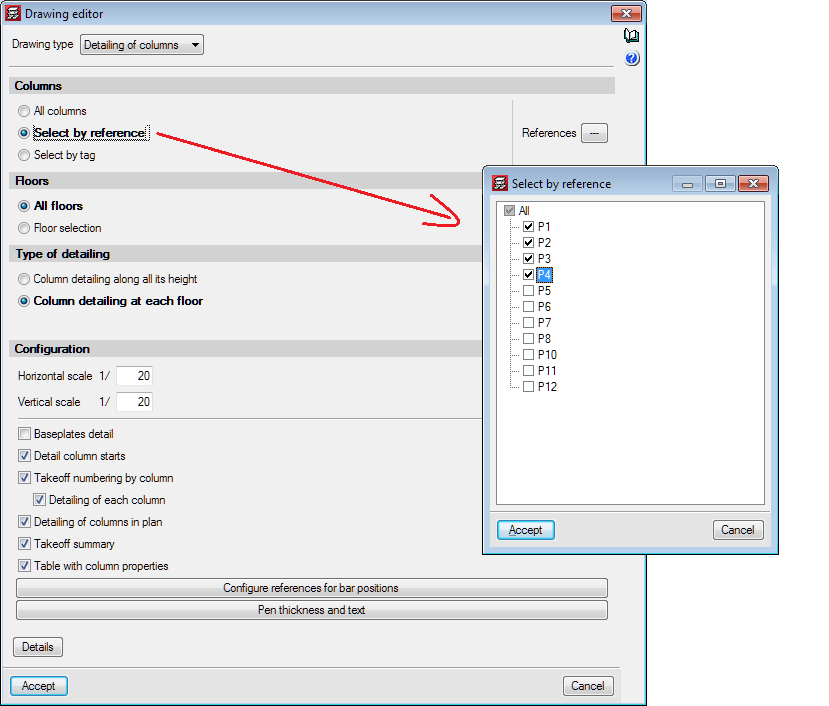

CYPECAD. Selection of columns in "Column details" and "Column schedule" drawings



Selection of columns in "Column details" and "Column schedule" drawings



In the 2020.e version, users have the possibility to obtain the "Column details" and "Column schedule drawings" for columns that have been selected by reference.

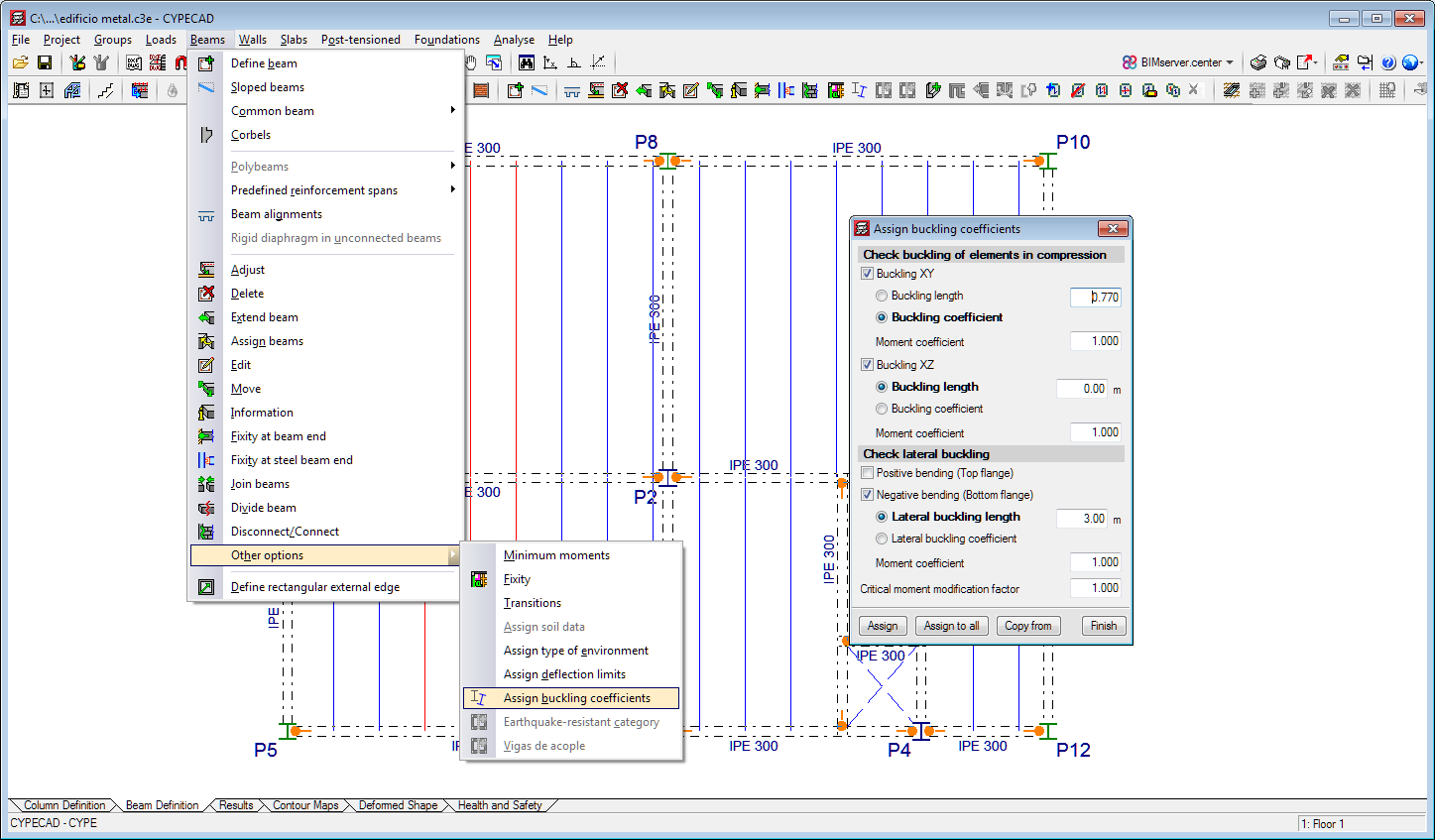

CYPECAD. Assign buckling and lateral buckling coefficients to steel and timber beams



Assign buckling and lateral buckling coefficients to steel and timber beams

Users can assign buckling and lateral buckling coefficients to steel and timber beams. This option allows users to assign different values to each beam.

This option is located in the Beam Definition tab (Beams > Other options > Assign buckling coefficients).

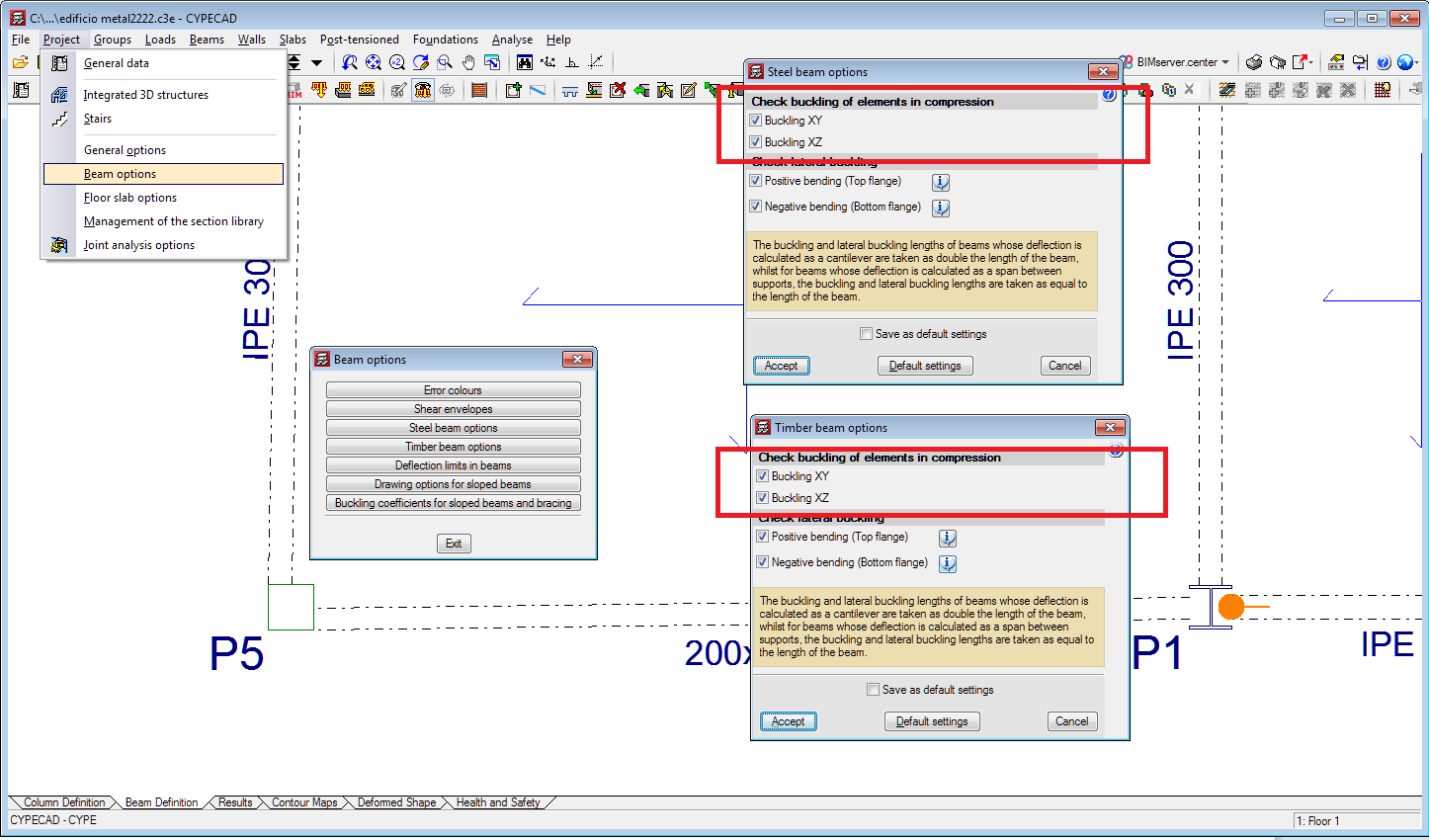

CYPECAD. Activate or deactivate the buckling check for steel or timber beams that are subjected to compression



Activate or deactivate the buckling check for steel or timber beams that are subjected to compression

In the 2020.e version, an option has been implemented to activate or deactivate the buckling check for steel or timber beams that are subjected to compression in the XY plane and in the XZ plane (in CYPECAD only beams that are disconnected from the rigid diaphragm can be subjected to compression). In previous versions, compressed steel or timber beams were always checked for buckling.

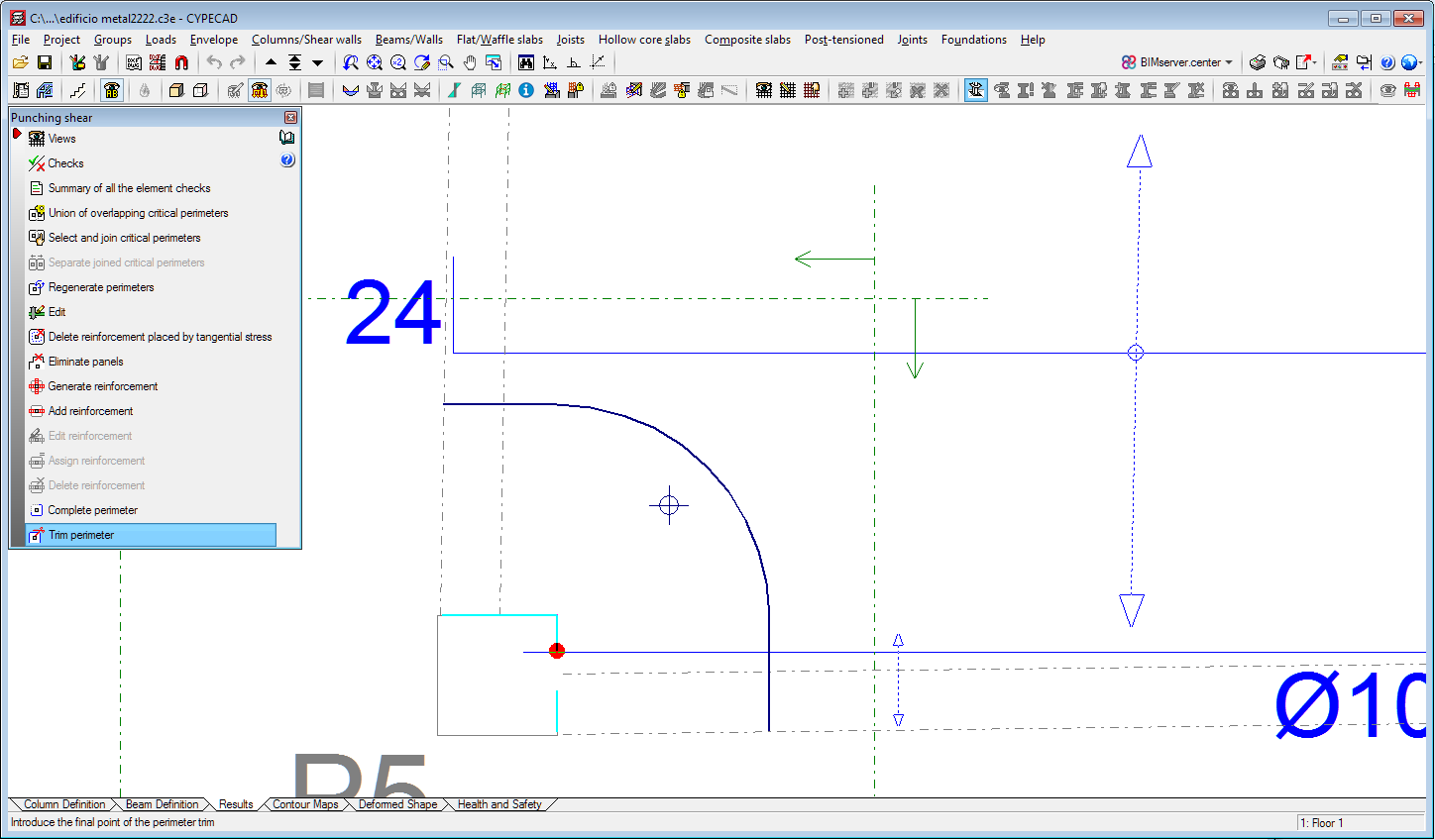

CYPECAD. Edit the perimeter of the support for punching shear check



Edit the perimeter of the support for punching shear checks

In previous versions to the 2020.e version, users could complete or trim the critical perimeter and reinforcement perimeter in the punching shear check. As of the 2020.e version, it is also possible to complete or trim the perimeter of the support.

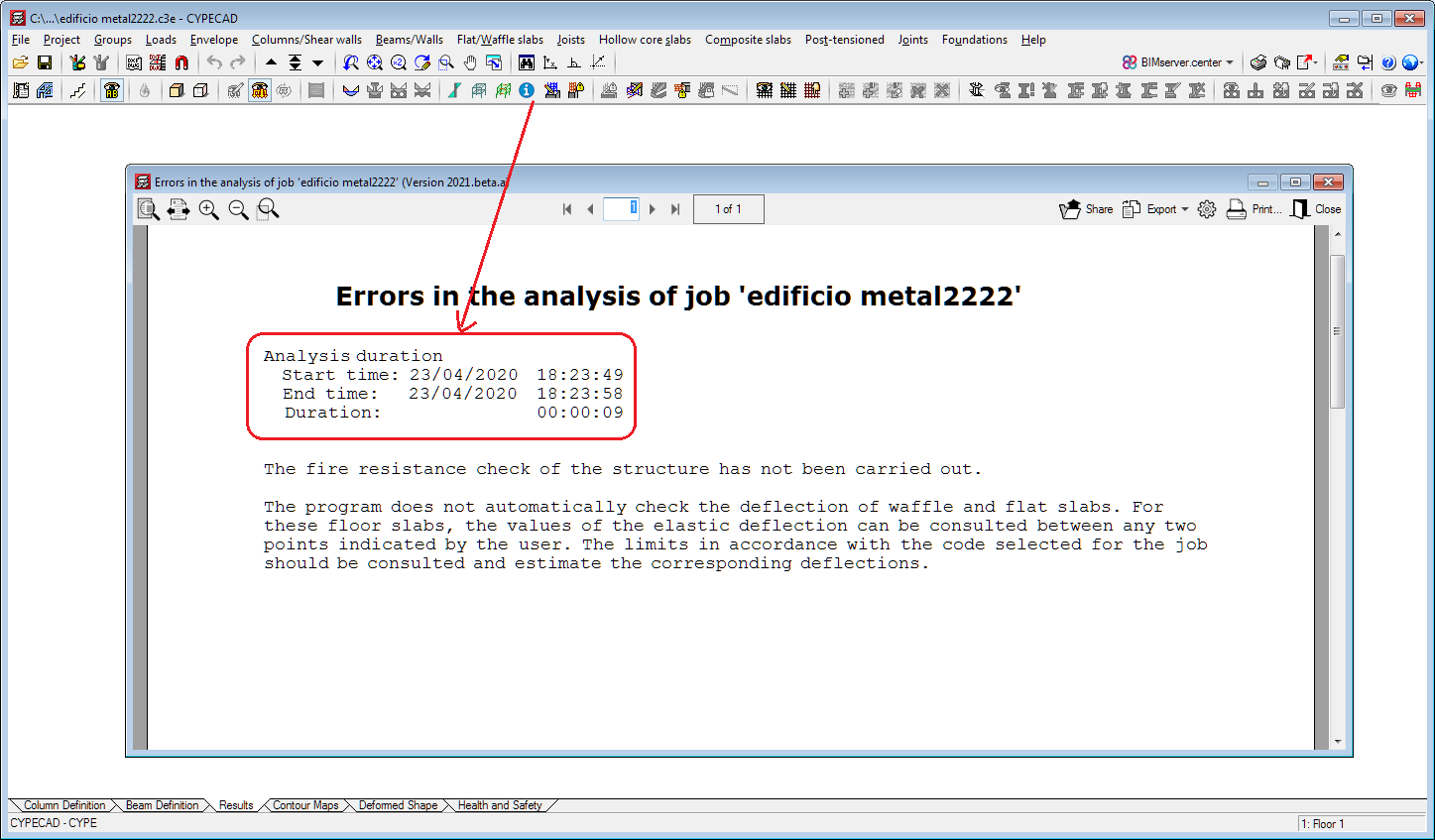

CYPECAD. Analysis duration in the final report



Analysis duration in the final report



As of the 2020.e version, the start time, end time and duration of the analysis is added to the final design report.

CYPECAD. Assign elevation differences to intermediate floors of walls



Assign elevation differences to intermediate floors of walls

With this improvement, which is included in the "Sloped floor slabs/ El. Changes" option in the "Walls" menu, users can define an opening in a wall when the upper elevation of the opening is higher than the elevation of the floor. This improvement is useful when intermediate floors have to be defined in the project, such as roof slabs at different heights.

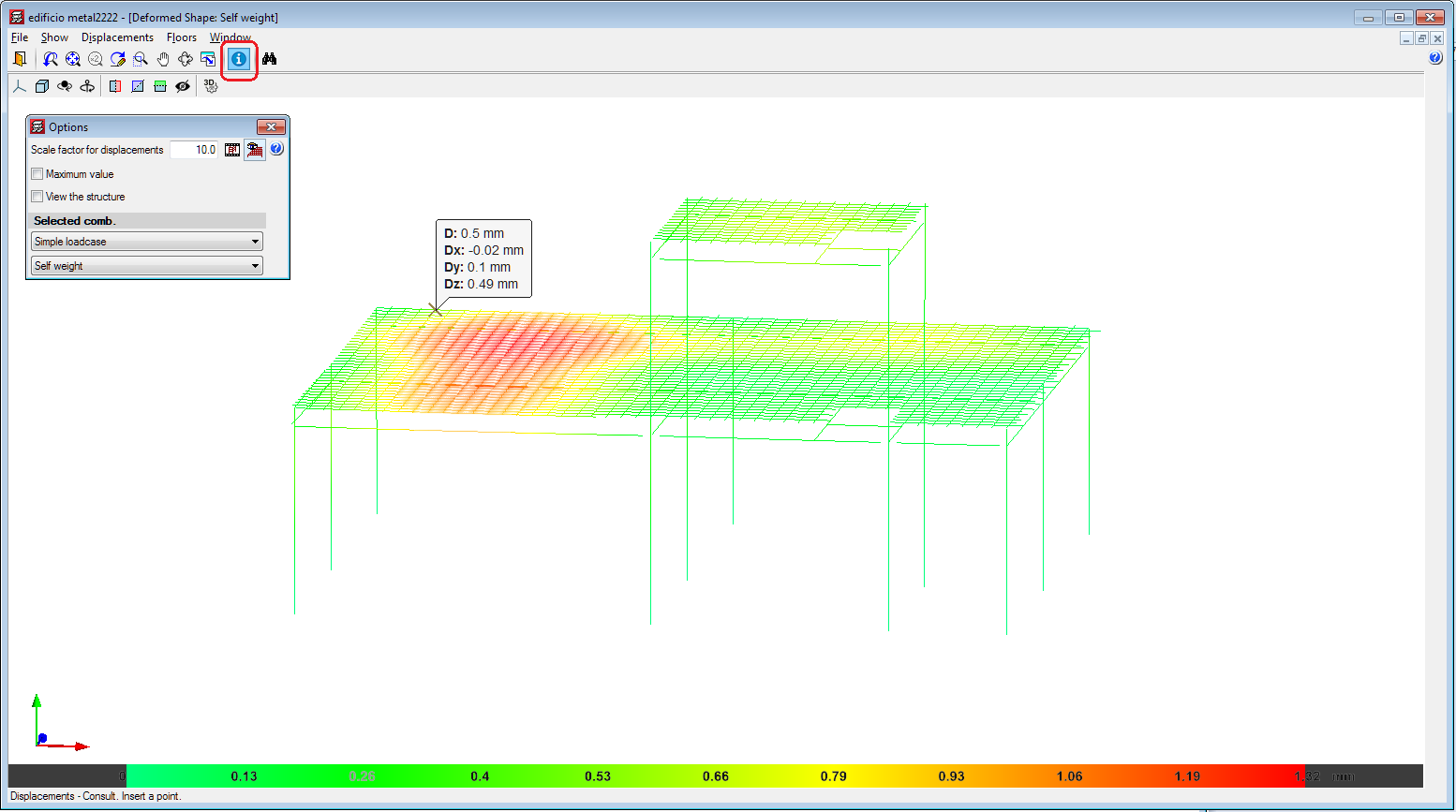

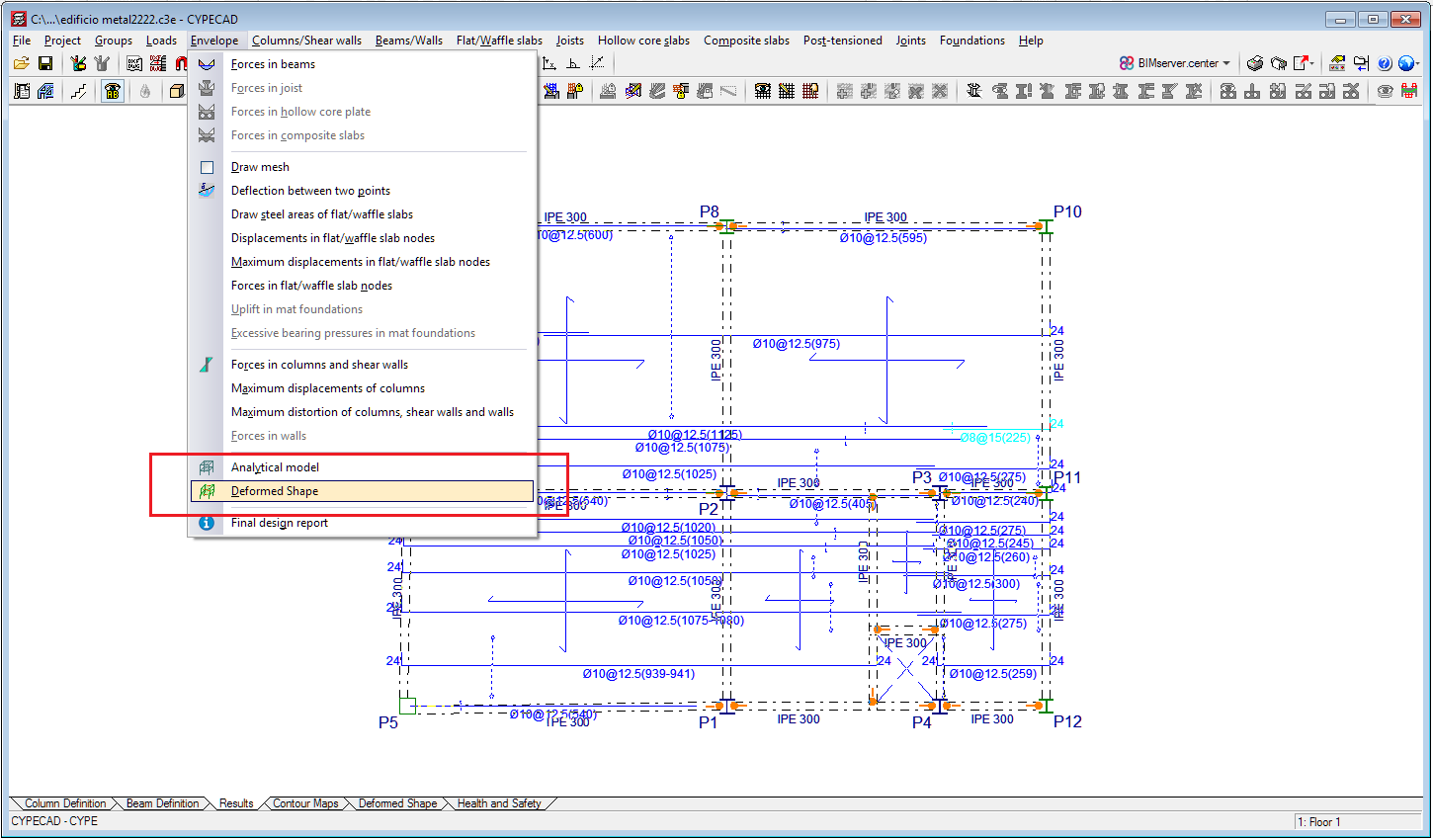

Consult displacements in the 3D view of the deformed shape

In the 2020.e version of CYPECAD, users can consult results in the 3D view of the deformed shape. This window is accessed from the "Deformed shape" tab, and also (as of the 2020.e version) from the "Deformed shape" option of the "Envelopes" menu of the "Results" tab.

By activating the "Consult" button in the window of the 3D view of the deformed shape, the program displays the displacement values of the points of the structure on which the mouse cursor is placed.

CYPECAD. Consult displacements in the 3D view of the deformed shape CYPECAD. Consult displacements in the 3D view of the deformed shape

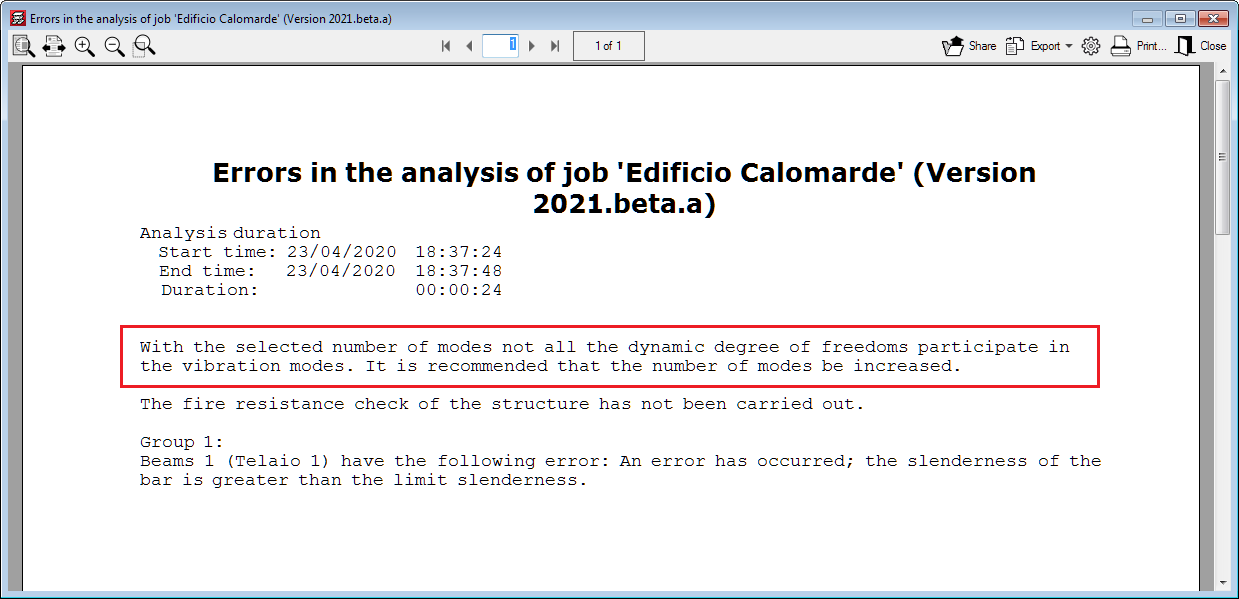

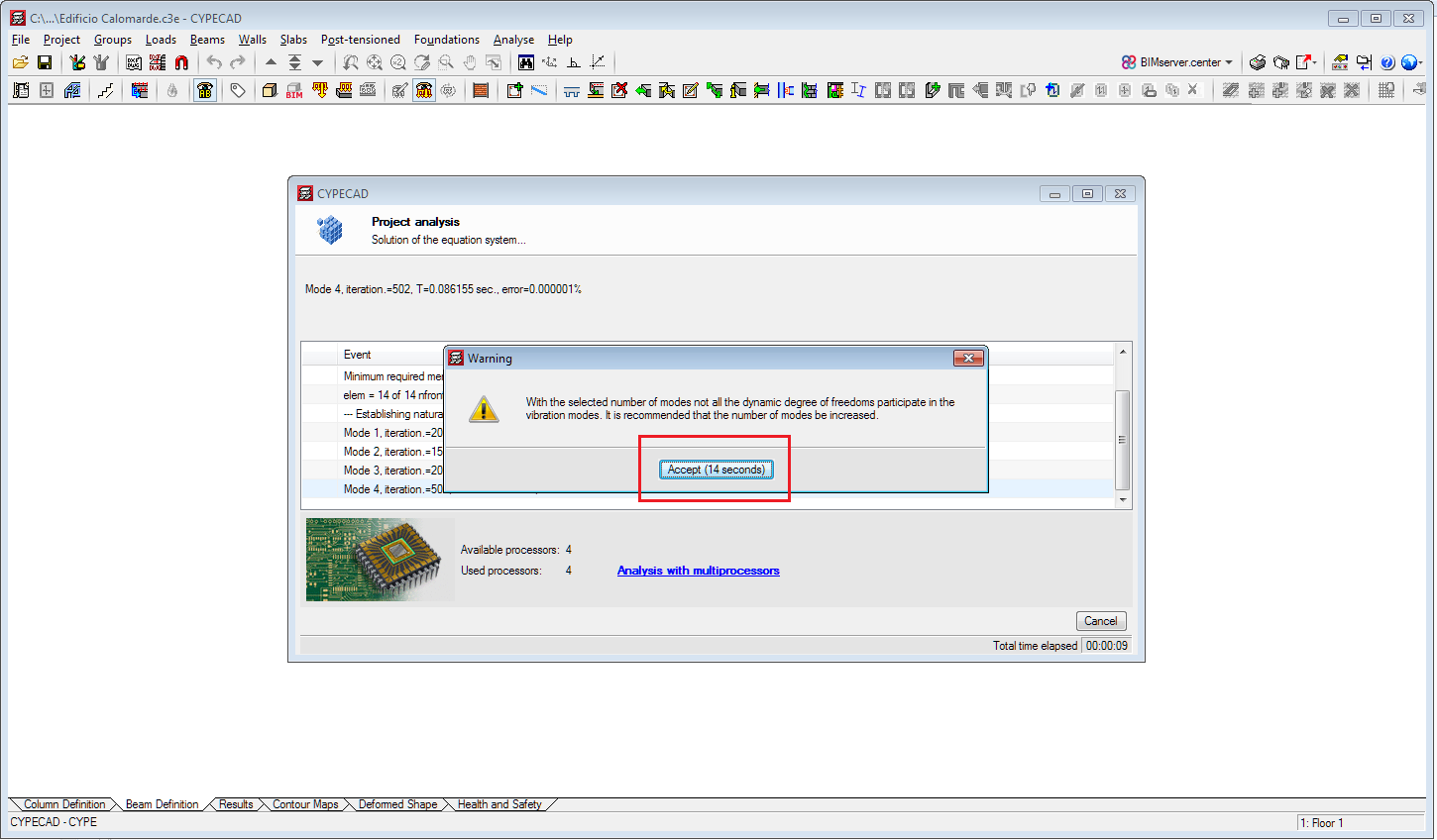

The analysis is not interrupted with warnings requiring users' approval

In previous versions, certain warnings interrupted the analysis until users accepted them. As of the 2020.e version, these warnings are displayed with a twenty second wait before closing automatically. In any case, these errors appear in the final report. This improvement allows the analysis to continue and finish when these warnings appear without the need for users to be on the lookout.

CYPECAD. The analysis is not interrupted CYPECAD. The analysis is not interrupted

Correction of errors at wall intersections

Errors related to specific geometries at wall intersections at the same level and with walls introduced on other walls, which interrupted the analysis, have been corrected.



CYPE 3D and CYPECAD

Check of columns and timber bars with circular sections for the "CIRSOC 601" and "ANSI/AWC NDS-2015" codes

The 2020.e version includes the check of columns and timber bars with circular sections for the following design codes:

  • CIRSOC 601
  • ANSI/AWC NDS-2015

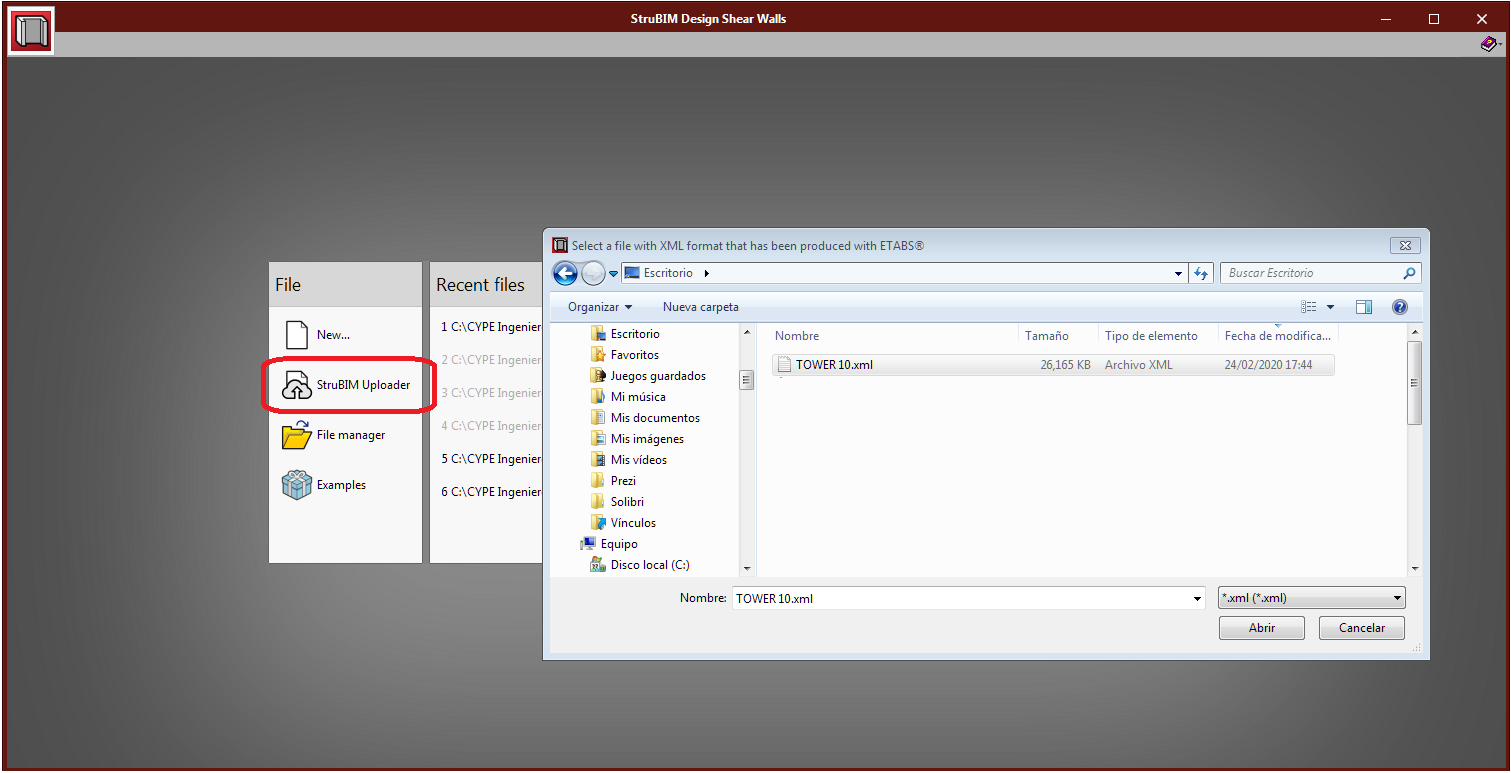

StruBIM Design Shear Walls

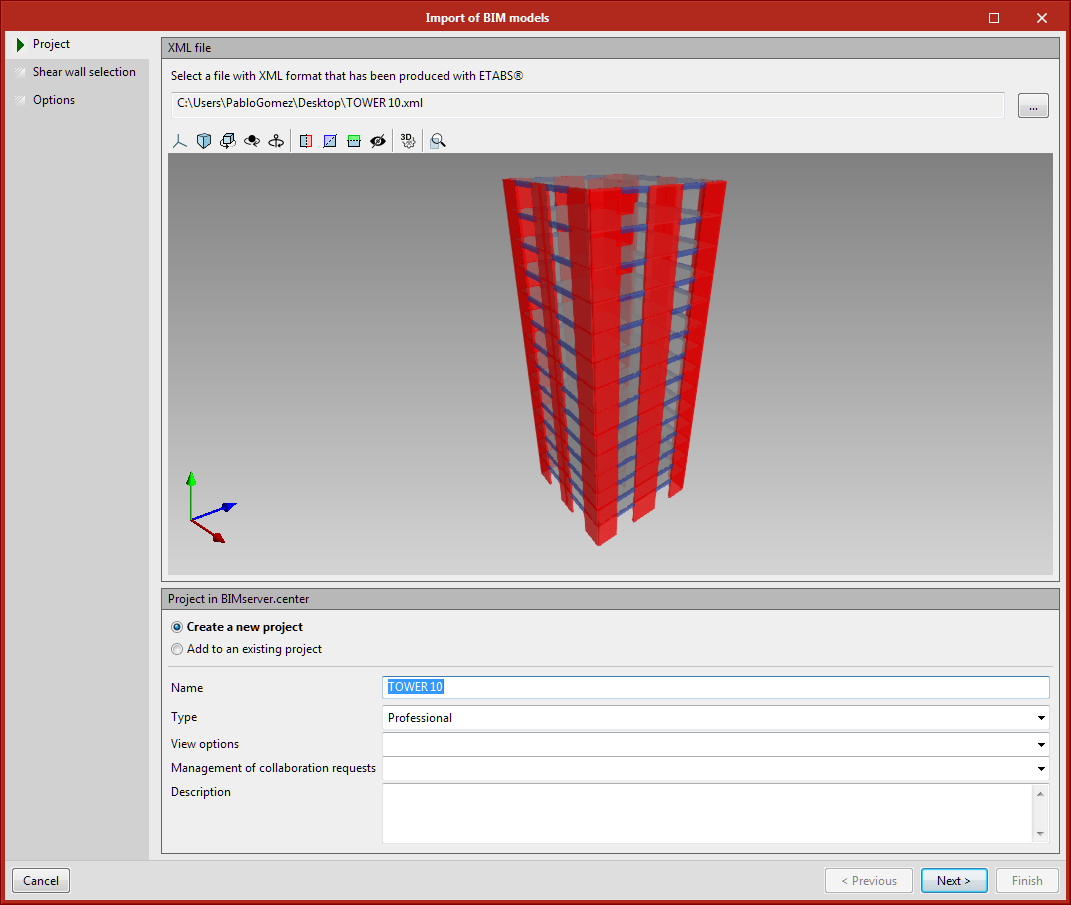

StruBIM Shear Wall projects based on ETABS® structural models

As of the 2020.e version, "StruBIM Shear Walls" can interpret ETABS® structural models from the "ETABS 2016" and "ETABS 18" versions (ETABS® is a registered trademark of Computer & Structures, Inc). "StruBIM Shear Walls" obtains the information that is required to design the shear walls from this structural model.

"StruBIM Shear Walls" users can import the structural model from ETABS® using two methods:

  • Import of the structural model of an Open BIM project
    When "StruBIM Shear Walls" creates a new project, users can connect to an Open BIM project from which the ETABS® structural model can be selected and imported (if it has been included previously in the project using "StruBIM Uploader").
  • "StruBIM Uploader" option included in "StruBIM Shear Walls"
    In the project selection and creation panel of "StruBIM Shear Walls", the option "StruBIM Uploader" has been implemented. This option asks users to select a file in XML format that has been produced with ETABS® software, uploads the ETABS® structural model to an Open BIM project of the BIMserver.center platform (the same way "StruBIM Uploader" would do) and obtains from it, the information that is required to carry out the design of the shear walls.

StruBIM Design Shear Walls StruBIM Design Shear Walls

Improvements in the design process

In the 2020.e version, the design process has been improved to obtain more optimised reinforcement.



CYPECAD MEP

Work simultaneously on several projects

The possibility to open CYPECAD MEP several times simultaneously has been implemented. This way, users can work on multiple projects at the same time. This option was already available in other CYPE applications.

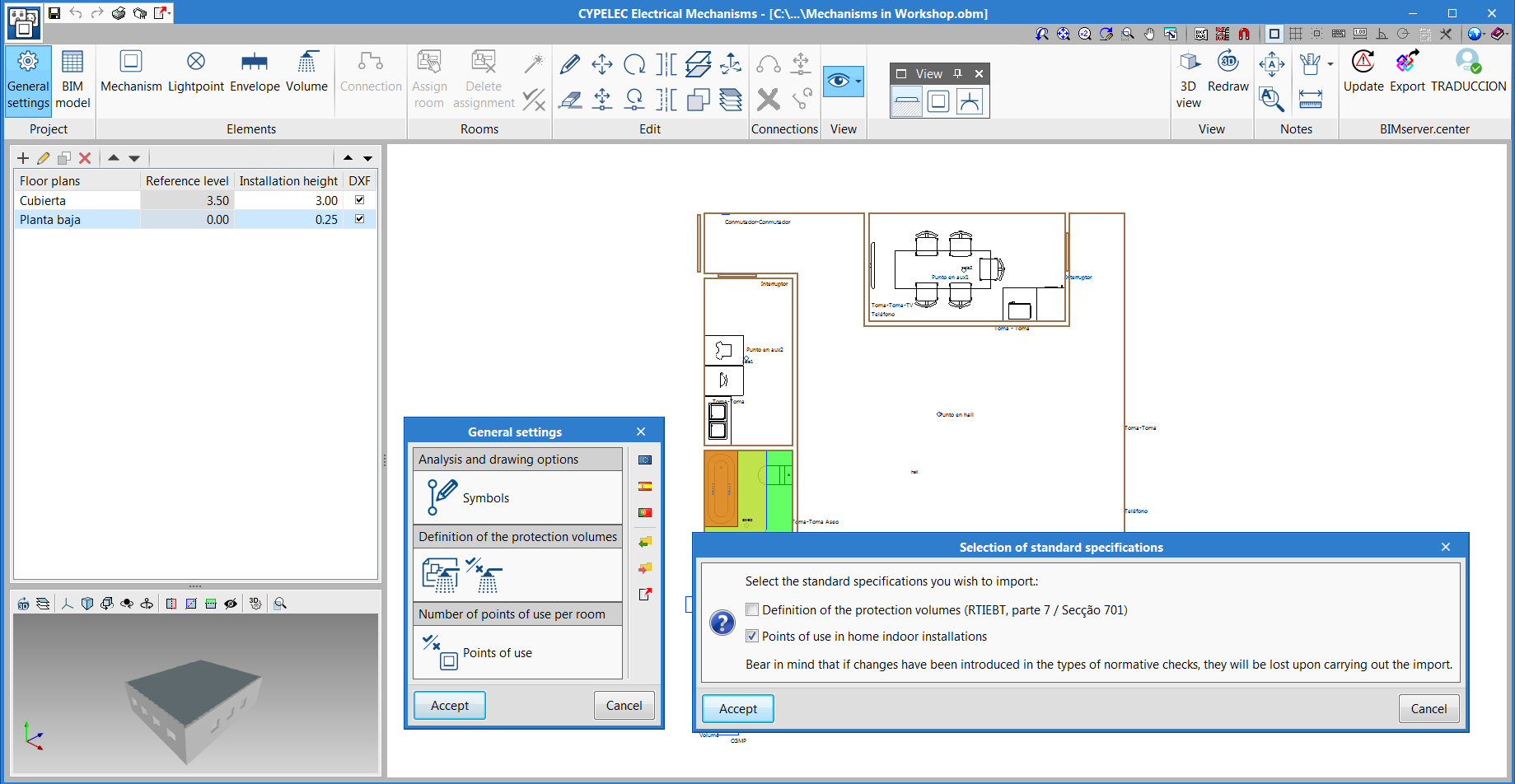

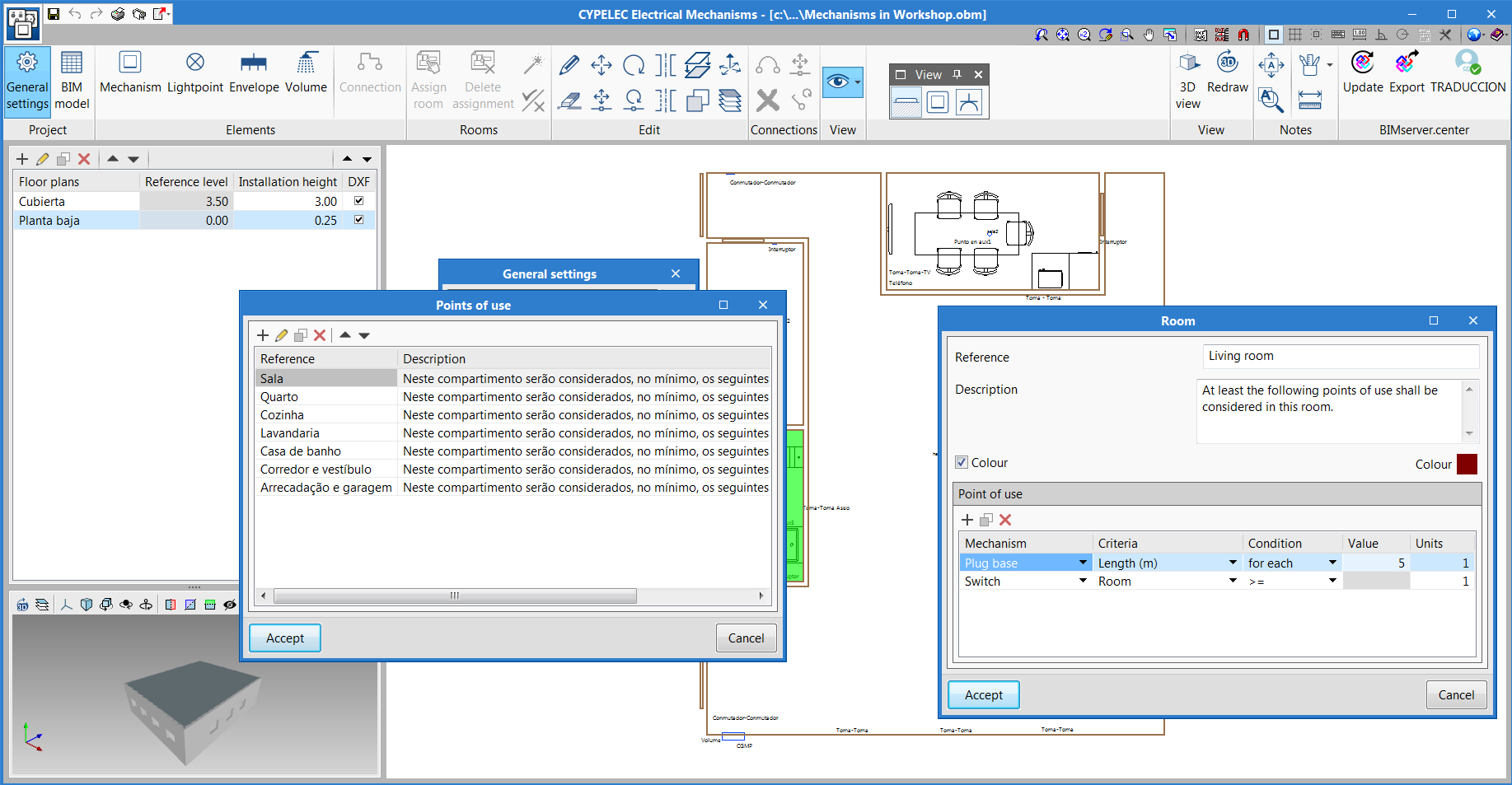

CYPELEC Electrical Mechanisms

Minimum points of use for installations in Portugal

The 2020.e version of "CYPELEC Electrical Mechanisms" includes the definition of the recommended number of points of use for each room when the code specifications for Portugal are selected in the "General options" panel.

CYPELEC Electrical Mechanisms CYPELEC Electrical Mechanisms

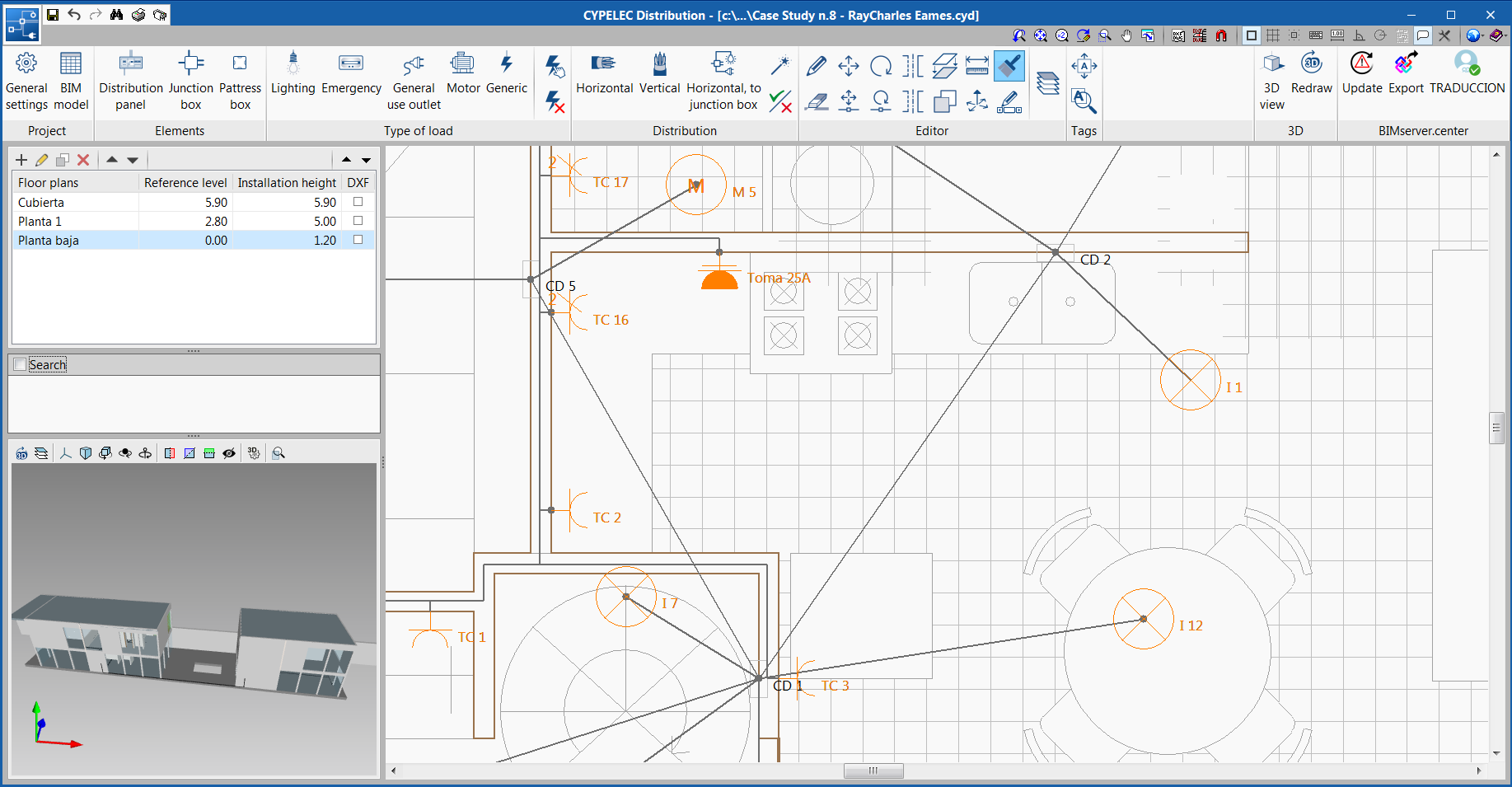

CYPELEC Distribution. "Match" tool

CYPELEC Distribution

"Match" tool

The "Match" tool has been implemented to copy parameters from one load to another. Simply select the load to be copied, then the destination loads. This option is located in the "Edit" section of the toolbar.

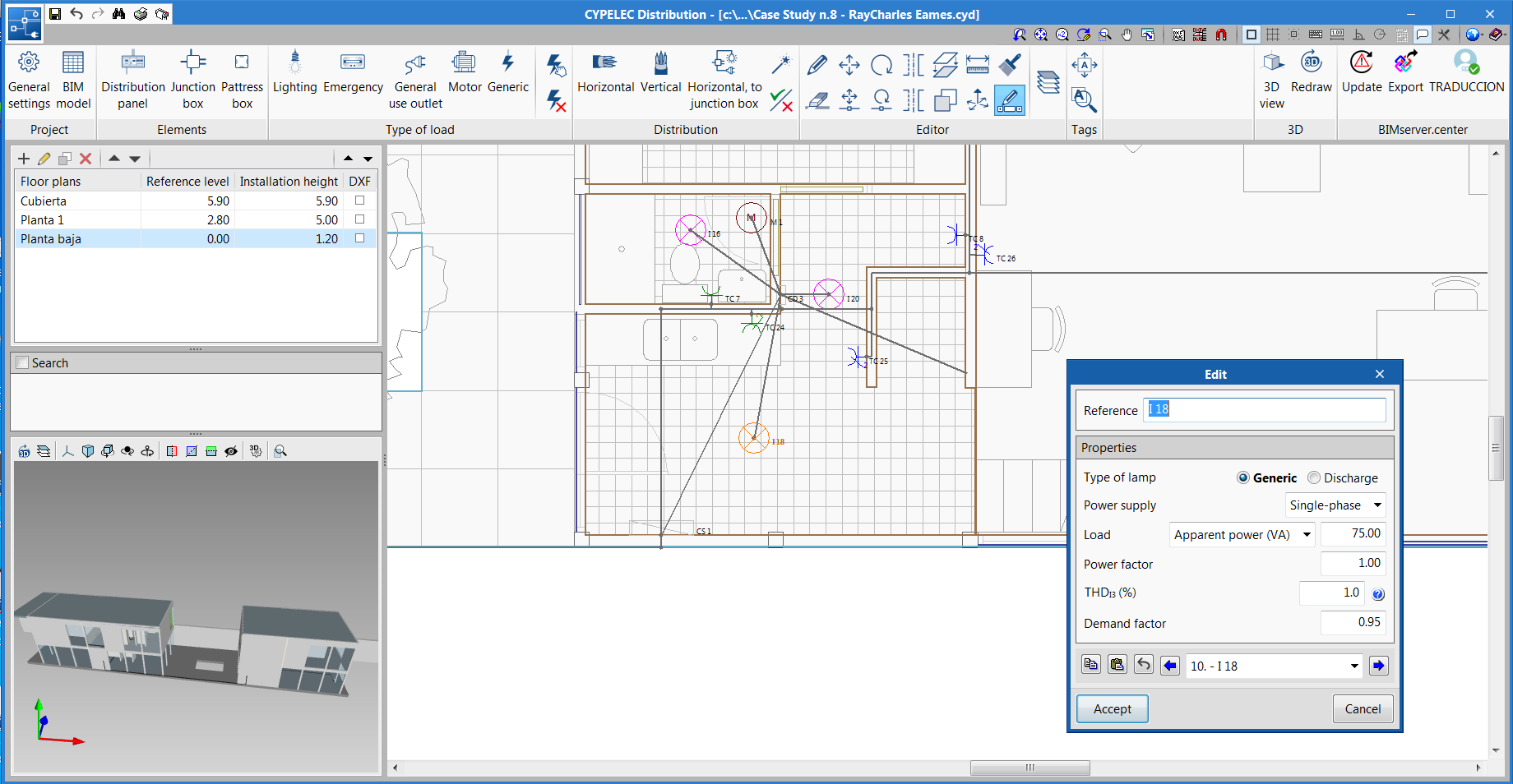

CYPELEC Distribution. Series editing of loads that have been entered

Series editing of loads that have been entered

The "Edit series" tool has been implemented, with which users can edit, in series, loads that have been introduced. This tool is located in the "Edit" section of the toolbar.

If the "Edit series" tool is active, when any element of the single-line diagram is edited, for example, a lighting point, the editing panel that appears has a lower bar that allows users to scroll along (backwards and forwards) all the loads that are present in the electrical distribution. This tool also allows users to copy the editing parameters of the load that is being displayed and paste them to another previous or later load.

The "Edit series" tool is designed to edit and view load characteristics more quickly.

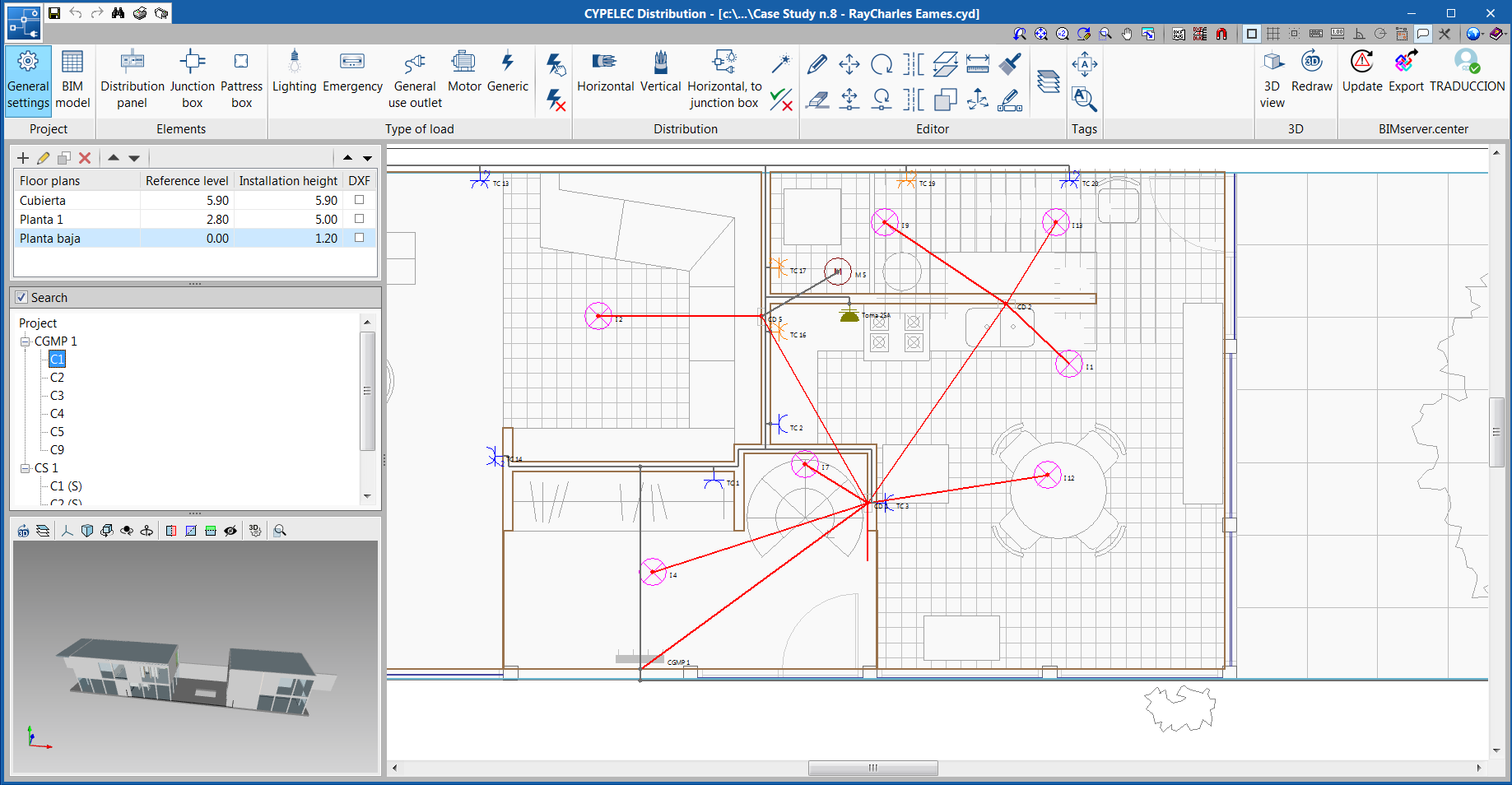

CYPELEC Distribution. View of the circuit distribution



View of the circuit distribution

A side tool has been implemented, which users can use to search for panels and subpanels that have been entered, and their respective circuit distribution.

Once the analysis has finished, the tool allows users to mark the corresponding circuit to view its distribution on plan.

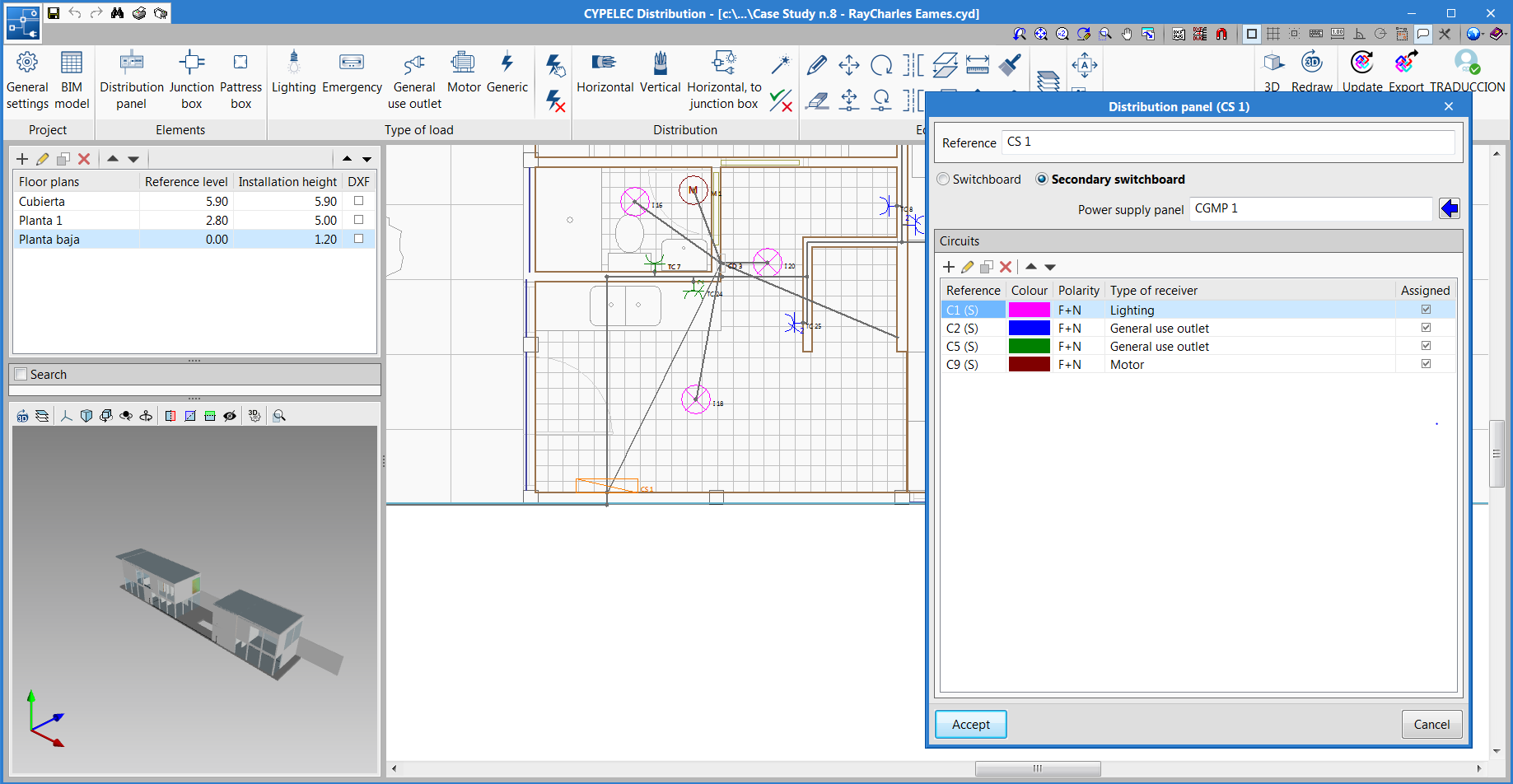

CYPELEC Distribution. Assign power supply panel of the electric subpanel

Assign power supply panel of the electric subpanel

The edit panel of the secondary switchboard is completed with the designation of its power supply panel. The power supply panel can be the main switchboard or another secondary panel.

This designation is mandatory and with it, the program detects that the panels are effectively interconnected and hence, there is a greater control of the proposed electrical distribution.

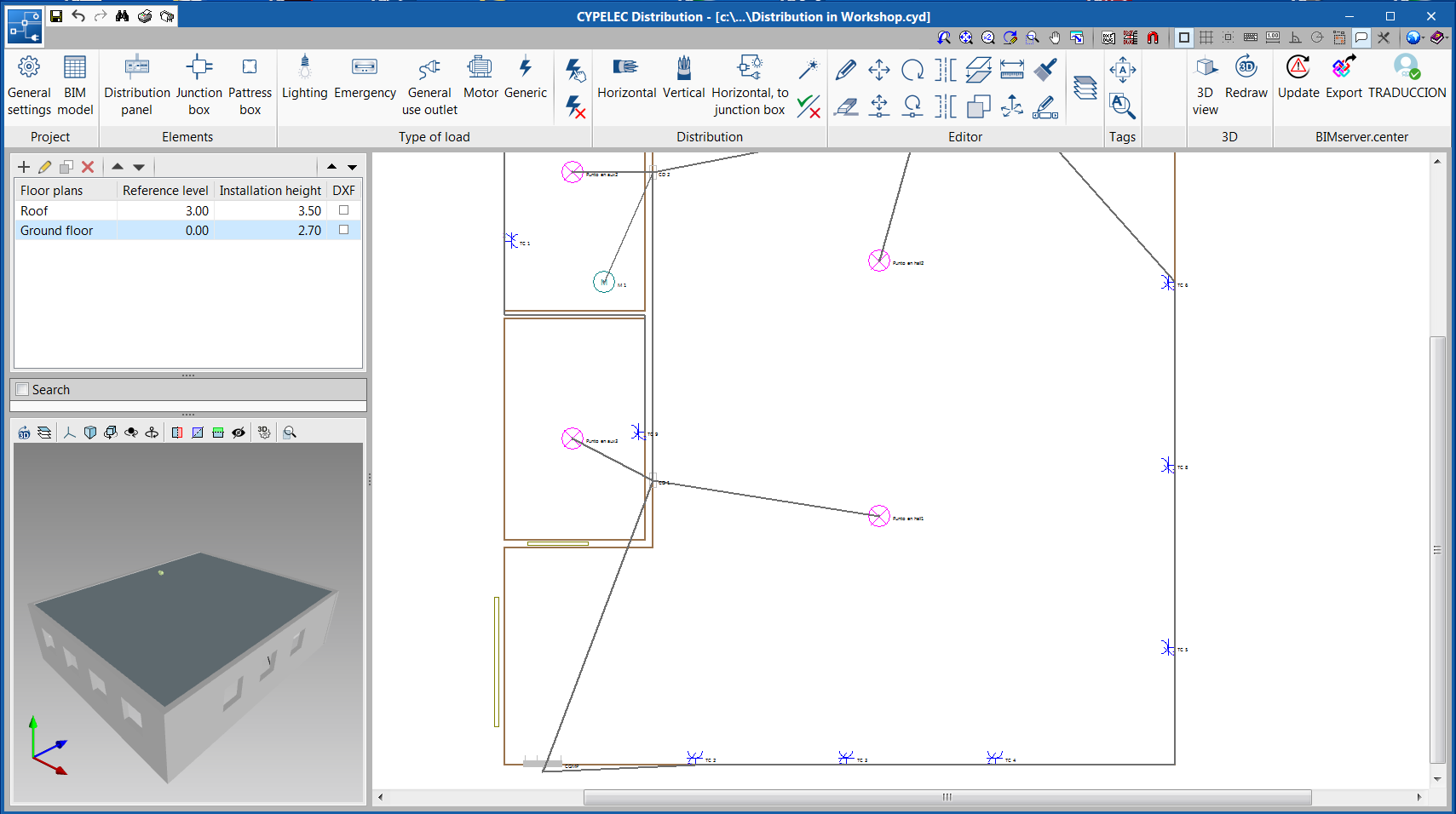

CYPELEC Distribution. Tool for the automatic distribution of loads to the junction box

Tool for the automatic distribution of loads to the junction box

A typical electrical distribution is where certain lighting loads are connected to the same junction box. To speed up this process, a tool called "Horizontal, to junction box" has been included in the "Distribution" block of the toolbar.

The tool works by selecting the loads that are supplied from the same junction box, then click on the right mouse button and then select the junction box itself. The program will generate the connection distribution (star shaped), both horizontal and vertical, between each load and the junction box.

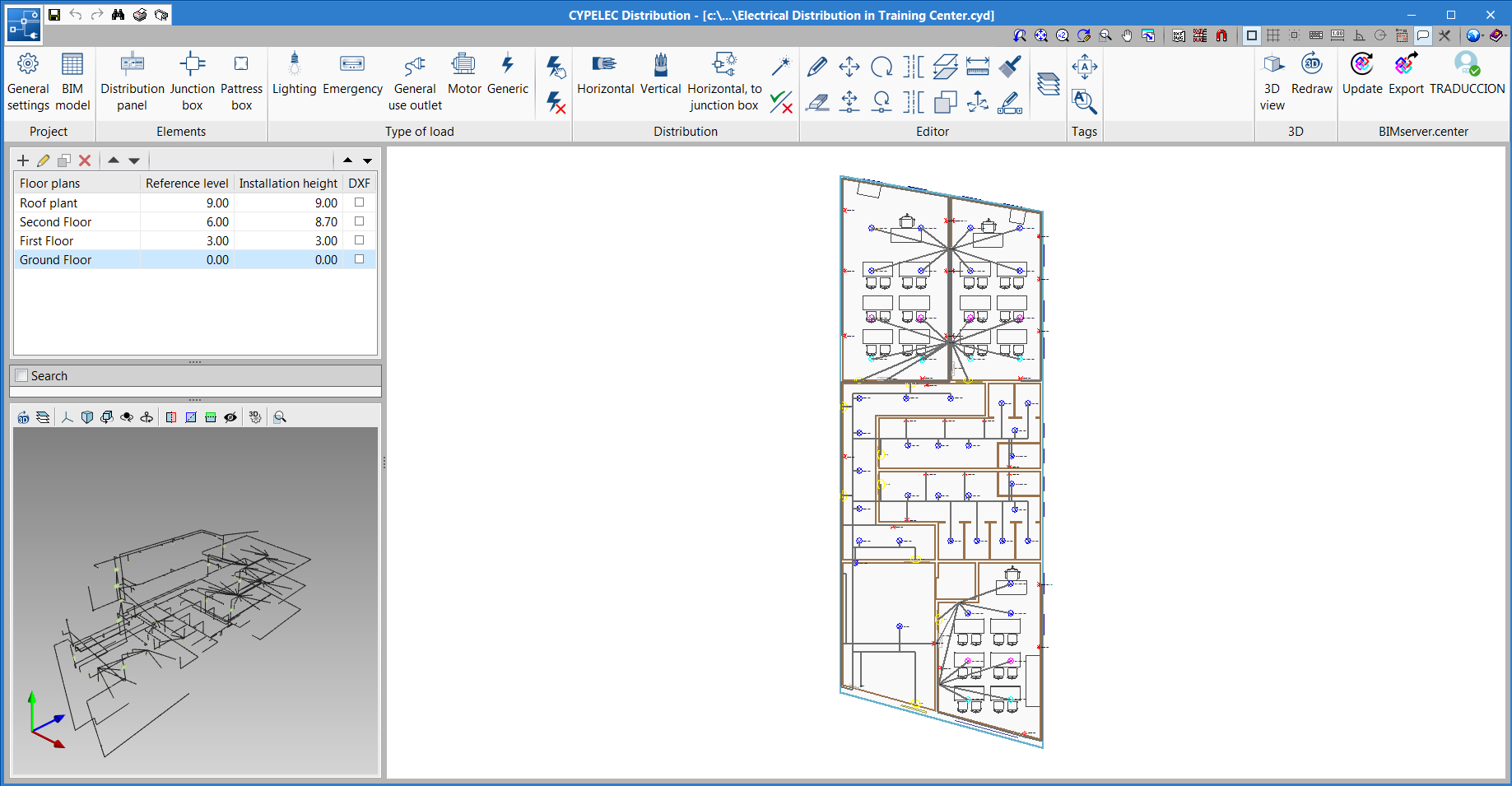

CYPELEC Distribution. New project example



New project example (Training Center)

A new project example has been included: "Electrical distribution in training center". This project represents the electrical distribution in a training center that contains a single switchboard, and several secondary panels.



CYPELEC PV Systems. View consumption and generation graphs

CYPELEC PV Systems

View consumption and generation graphs

In the "Energy pre-design" window, it is possible to view all the generation and consumption graphs. This functionality makes it possible to quickly compare the corresponding energy consumption and generation for the whole year.

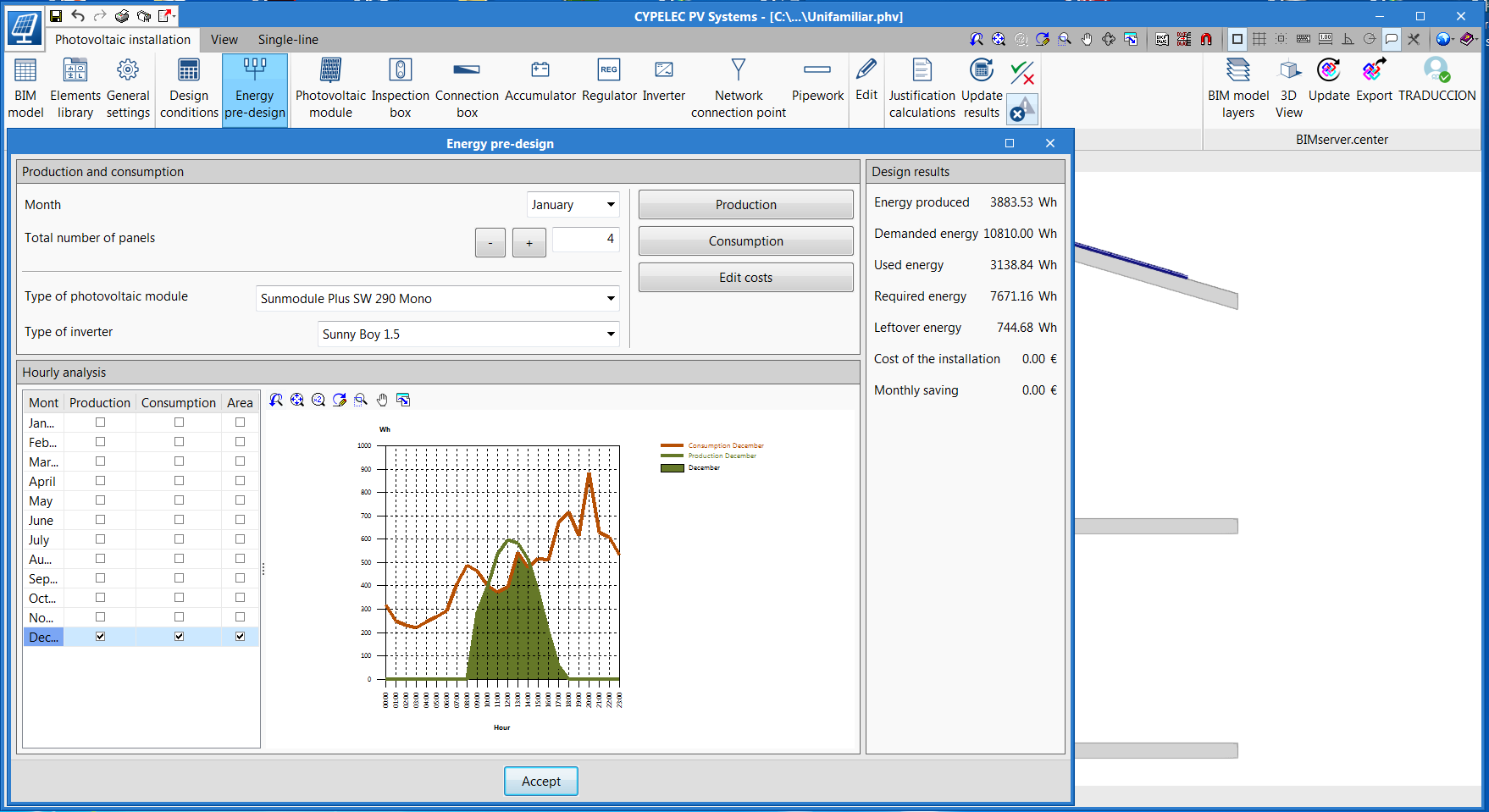

CYPELEC PV Systems. View the intersection between consumption and generation graphs

View the intersection between consumption and generation graphs

In the "Energy pre-design" window, it is possible to view the intersection between the generation and consumption graphs, showing the contribution of the energy that is generated by the photovoltaic installation with respect to the actual energy consumption in a given month.

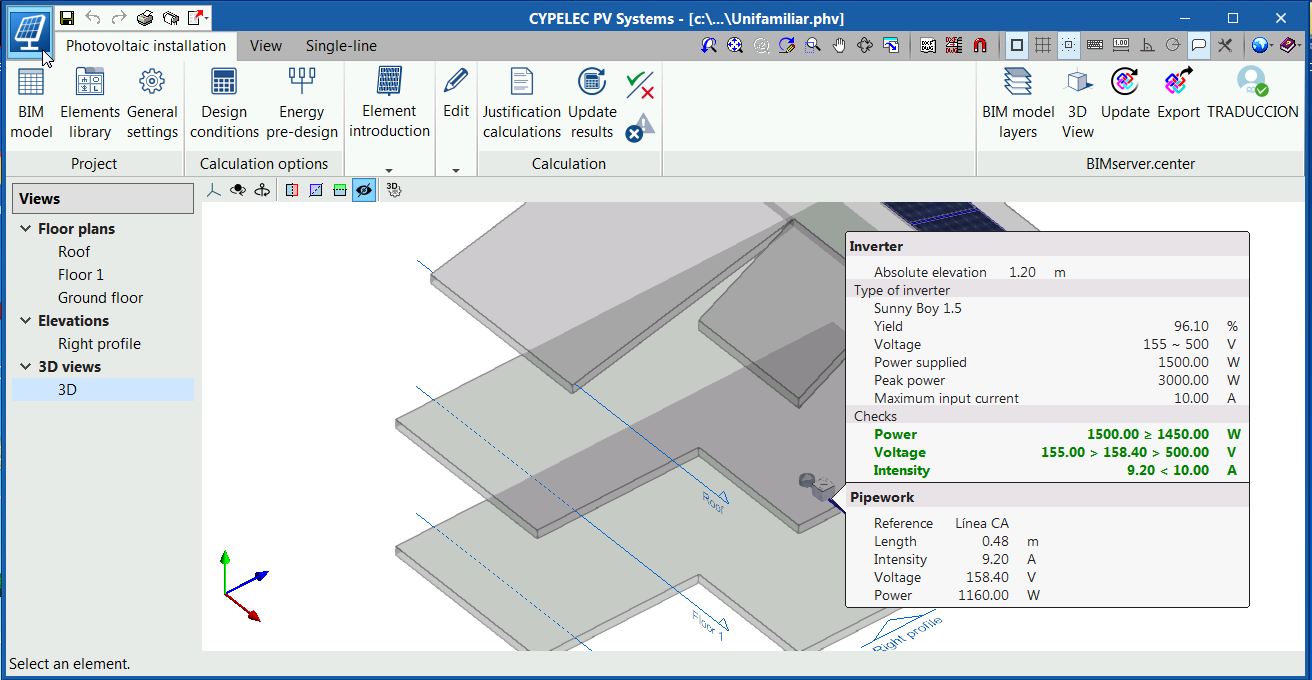

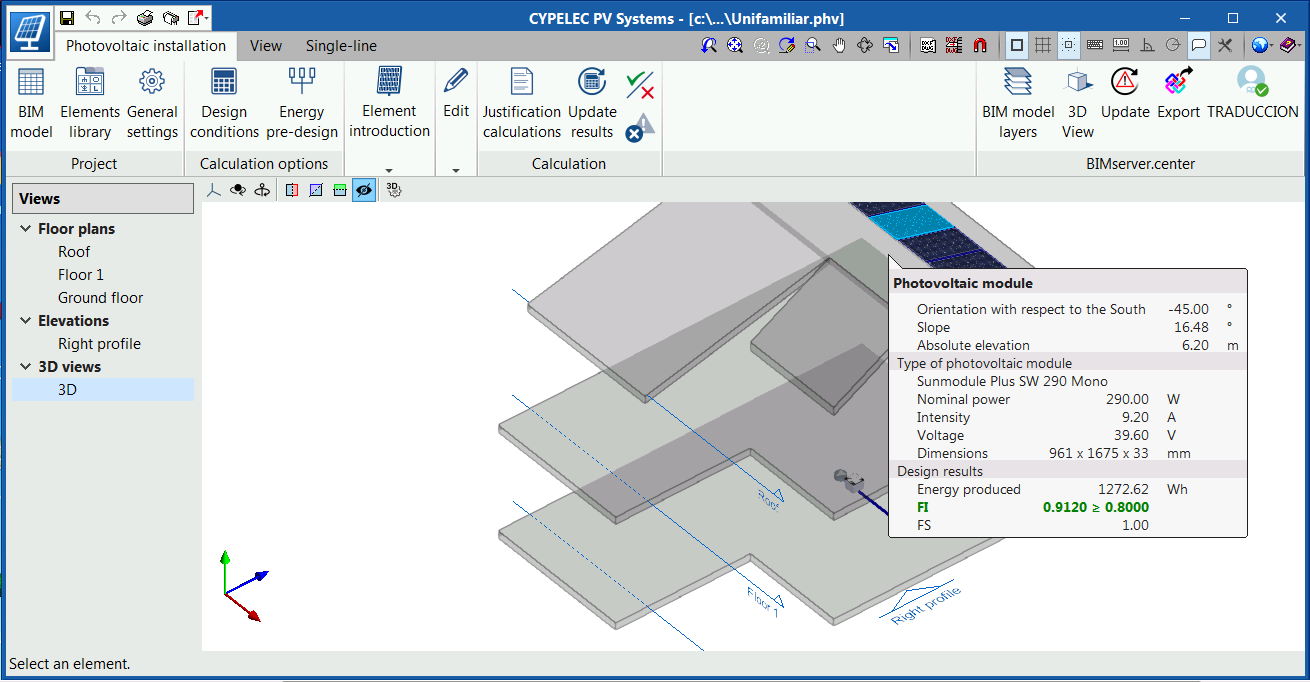

CYPELEC PV Systems. Extended information in the tooltips of the photovoltaic module and inverter

CYPELEC PV Systems. Extended information in the tooltips of the photovoltaic module and inverter

Extended information in the tooltips of the photovoltaic module and inverter

In the tooltips of the photovoltaic module and inverter, information has been added to the design results, so users can quickly analyse the results of the design that has been carried out.

Added to the tooltip of the photovoltaic module is:

  • The energy that is generated by the indicated module after the analysis.
  • The orientation and slope factor and whether it complies with the requirements or not.
  • The shade factor.

Added to the tooltip of the inverter is:

  • The power of the inverter and whether it is sufficient for the peak power that is generated.
  • The input voltage of the inverter and if it lies within the admissible values.
  • The input voltage of the inverter and if it is lower than its admissible current.

CYPELEC PV Systems. Justification of the losses by temperature of the photovoltaic module

Justification of the losses by temperature of the photovoltaic module

The temperature losses section of the justification report is complemented with a table specifying, for each photovoltaic module, the cell temperature that is reached and the temperature loss due to it.

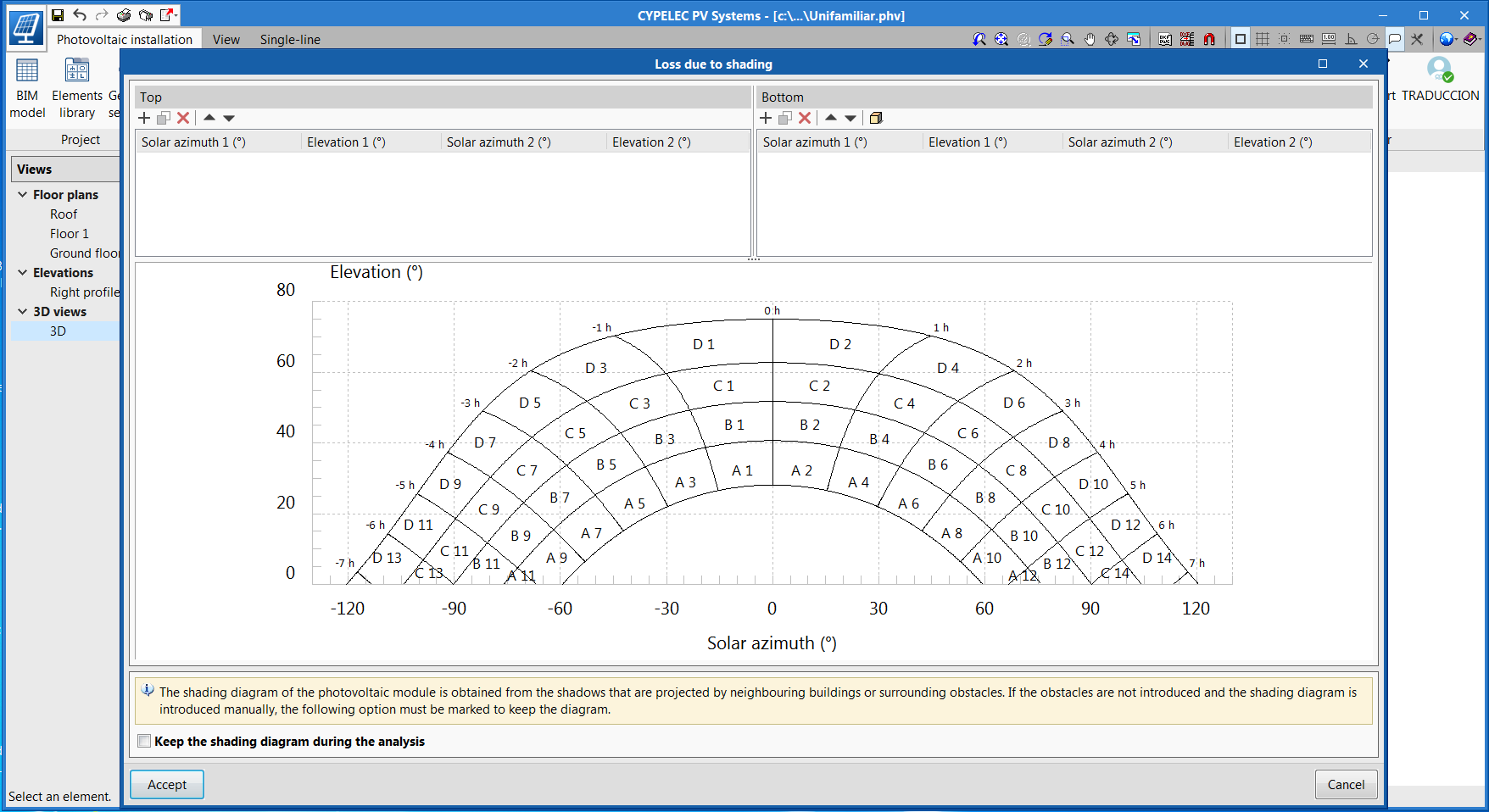

CYPELEC PV Systems. Possibility to save the shading diagram that has been edited manually

Possibility to save the shading diagram that has been edited manually

Users can save shading diagrams that have been entered manually. To do so, the option "Keep the shading diagram during the analysis" has been created. If this option is active, the shading diagram that has been entered manually will be saved and losses caused by shadows cast by nearby buildings or other surrounding obstacles will be ignored.

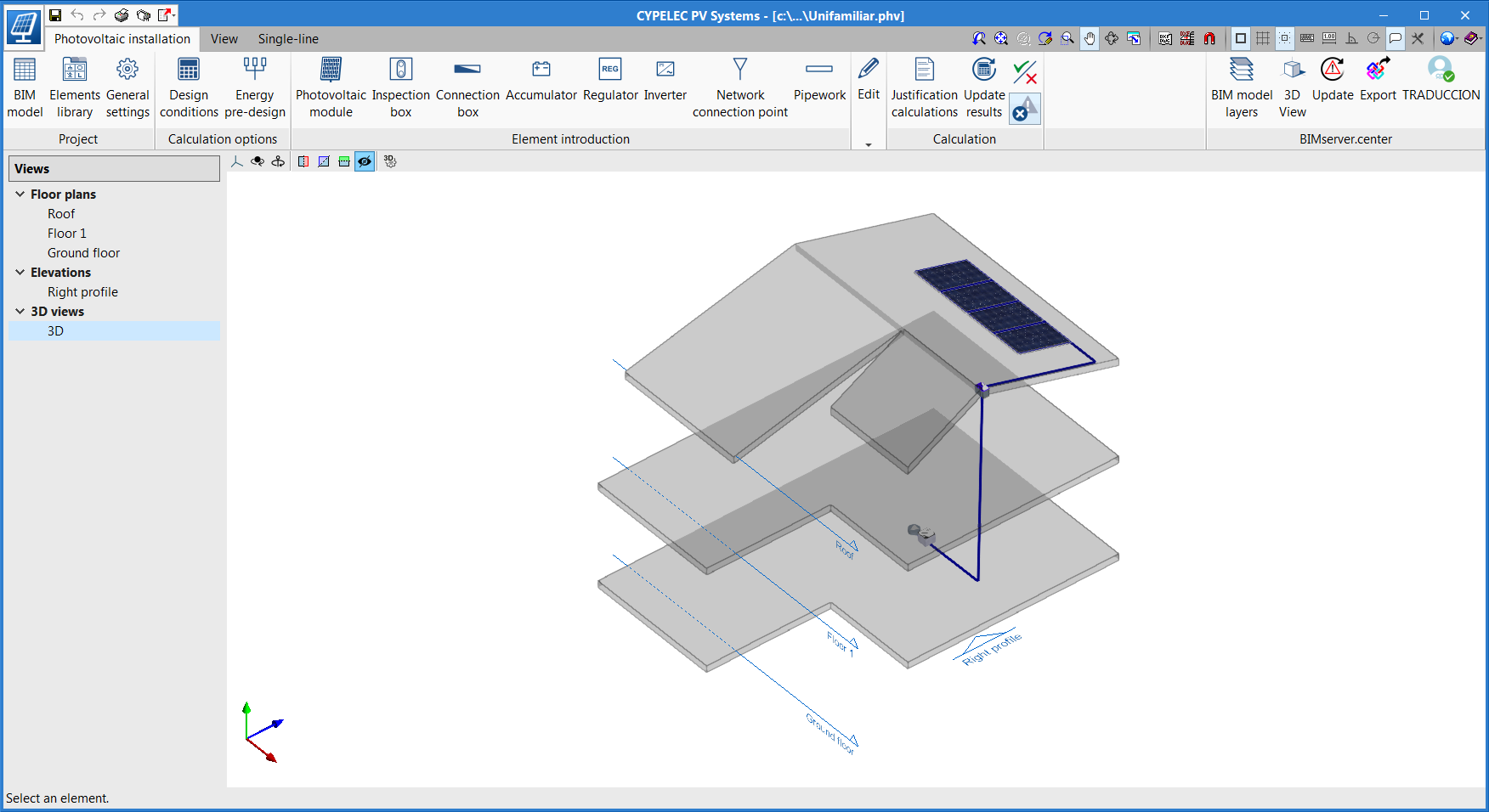

CYPELEC PV Systems. New project example for a single-family home

New project example for a single-family home

A new project example of a photovoltaic installation for a single-family home has been added, with four photovoltaic modules facing southeast.

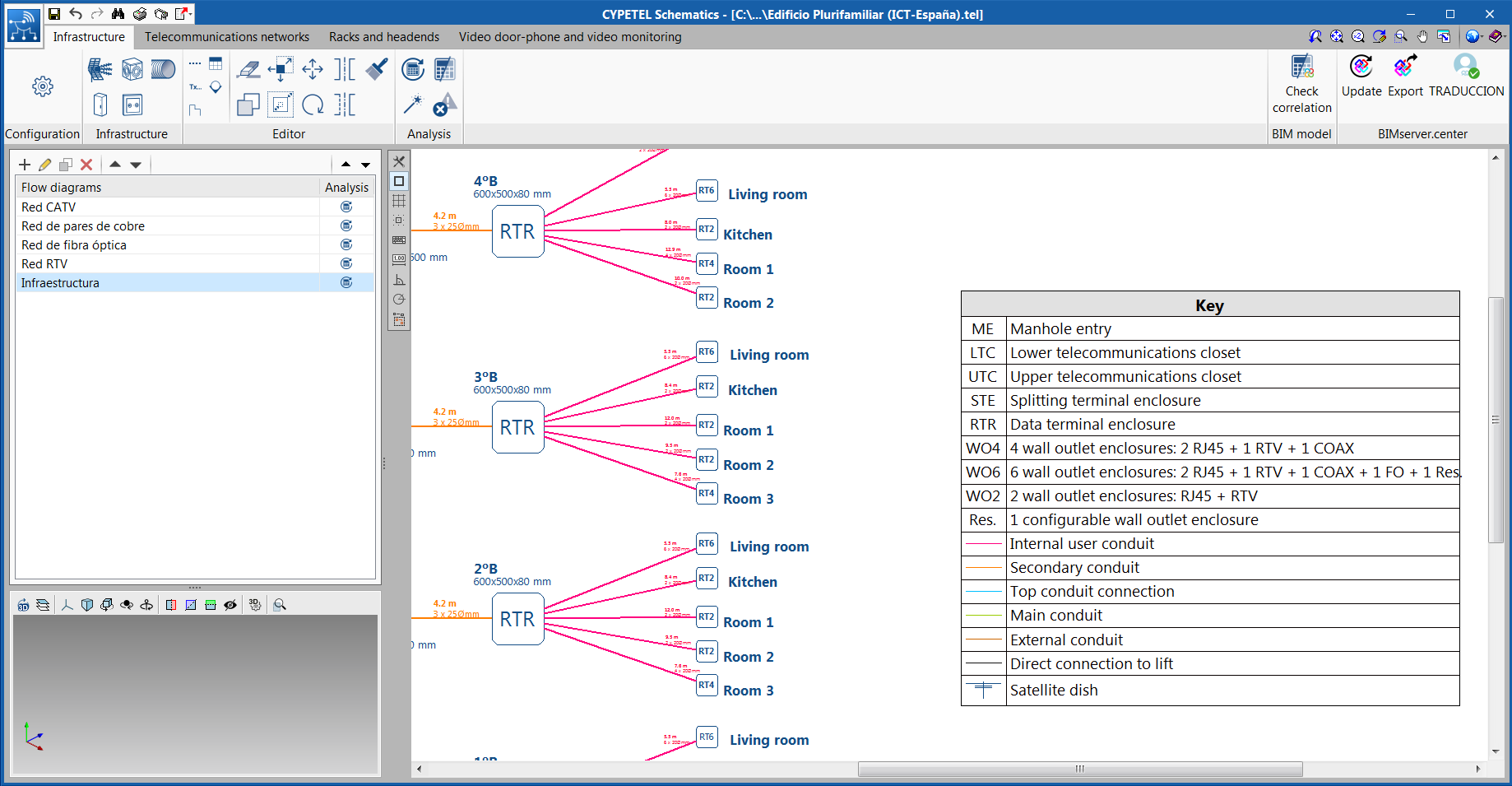

CYPETEL Schematics. Improved generation of images for the key

CYPETEL Schematics

Improved generation of images for the key

As of the 2020.e version, the images of the infrastructure elements (boxes, supply connections and grounding boxes) have the reference of the type in the image that is generated in the key. This way, a greater agreement is achieved between the appearance of the elements in the diagrams with respect to their image on the key.

Multiple export/import of the types of equipment and view preferences

Users can import and export the set of equipment types and so, have a single file to store them. This way, new projects can be generated more easily and quickly. The same action has also been performed for the view preferences.



CYPETEL Systems

"Symmetry" tool

A "Symmetry" tool has been developed to increase the development speed for projects.

CYPETEL Systems. Tags for elements on drawings



Tags for elements on drawings

Users can define view preferences for tags of the different elements so they can be displayed on floor plans.

CYPETEL Systems. Video door-phone/video monitoring equipment



Video door-phone/video monitoring equipment

Video door-phone and video monitoring equipment have been added so it can be included in the BIM model, and so complementing the video door-phone and video monitoring network diagrams that could already be carried out in CYPETEL Schematics.



CYPEPLUMBING Sanitary Systems, CYPEPLUMBING Water Systems, CYPEPLUMBNG Solar Systems, CYPEHVAC Hydronics and Open BIM Lighting

Bill of quantities

The "Bill of quantities" tab has been included in the 2020.e version. Now, users have tools that can be used to generate and manage the bill of quantities of the elements that have been introduced in these programs.

More information on this new feature can be found in the "Bill of quantities" tab in project phase Open BIM applications section, which affects several CYPE Open BIM programs.



CYPEFIRE Hydraulic Systems

Accessories and valves

The hydraulic analysis of singular losses produced by accessories and valves has been included in CYPEFIRE Hydraulic Systems. This new feature includes the following program updates:

  • Accessories and valves catalogue
    Two new receivers have been added to the "General options" panel, to introduce new accessories and valves.

    A series of accessories and valves has been added by default for each design code.

    As can be seen in the image, to create a new element, from either catalogue, simply introduce a reference and the associated loss coefficient of the element, to carry out the hydraulic analysis.

CYPEFIRE Hydraulic Systems

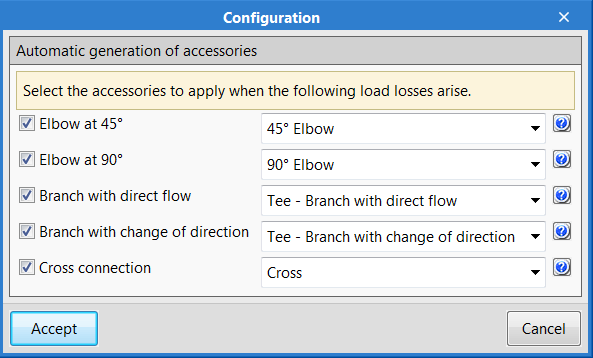

  • Automatic generation of accessories
    To optimise the time required to analyse the project, the "Automatic generation of accessories" option has been introduced in the "General data" panel. Using the automatic generation, the software recognises, depending on the distribution of the network, the following nodes and applies the load loss that is selected by users.

    • 45º elbow
    • 90º elbow
    • Tee – Branch with direct flow
    • Tee – Branch with change of direction
    • Cross

CYPEFIRE Hydraulic Systems

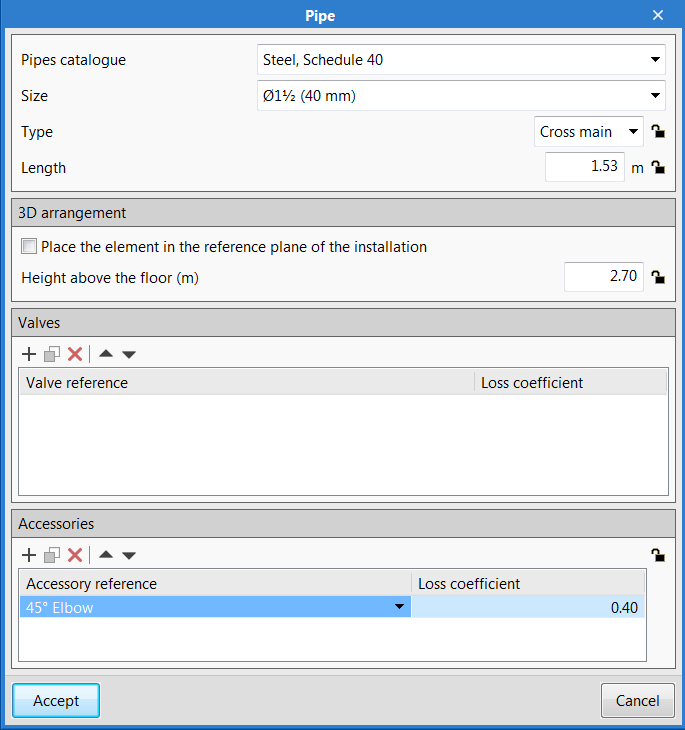

  • Introduction of singular elements
    Accessories and valves can be introduced manually on the pipes of the project. As can be seen in the image, accessories are blocked for the automatic generation, when they have been introduced manually.

    "CYPEFIRE Hydraulic Systems" includes the load loss of the outlet pipe, i.e., for two pipes that are connected by a 90º elbow, the application will apply the loss at the outlet pipe, in the direction of the flow of the water.

CYPEFIRE Hydraulic Systems

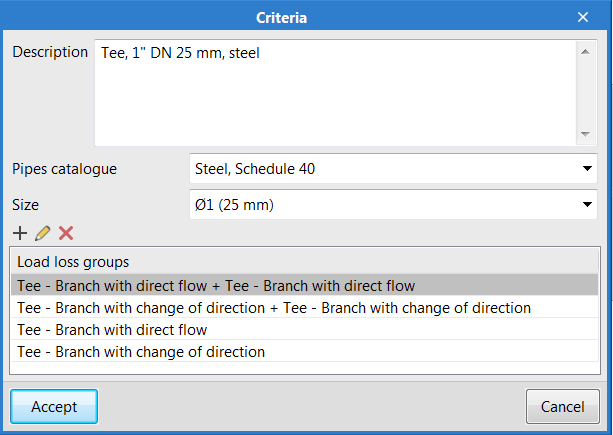

  • Measurement criteria
    A tool has been included in the "General options" panel which can be used to measure all the load losses that have been introduced in the installation. For these criteria, users must define:

    • Description of the measurement
    • Material of the element
    • Load loss groups

"Bill of quantities" tab

In the 2020.e version, the "Bill of quantities" tab has been added in "CYPEFIRE Hydraulic Systems". Now, users have tools that can be used to generate and manage the bill of quantities of the elements that have been introduced in the program.

More information on this new feature can be found in the "Bill of quantities" tab in project phase Open BIM applications section, which affects several CYPE Open BIM programs.

New material for pipes: Polypropylene

As of the 2020.e version, users can define pipes in "CYPEFIRE Hydraulic Systems" that are made out of polypropylene.

This material has a table of nominal diameters that is different to those of the other materials that are included in the program. Therefore, once a pipes catalogue has been generated with this selected material, it will not be necessary to change the material of the catalogue.

Export attached documents

"CYPEFIRE Hydraulic Systems" exports the following files to the Open BIM project, as well as the 3D view of the installation of the extinguishing system:

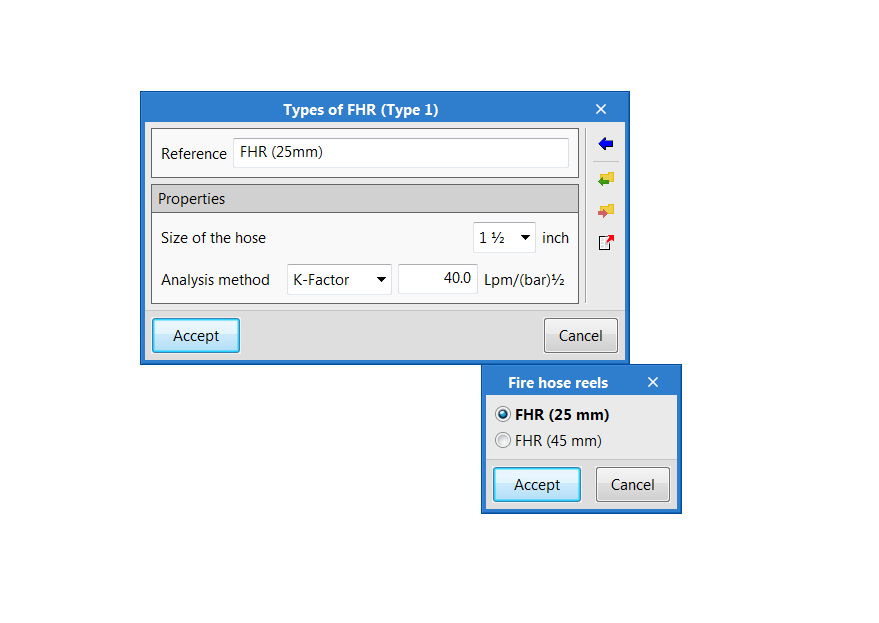

CYPEFIRE Hydraulic Systems. Predefined library of fire hose reels

  • Project
  • Material schedule
  • Drawings

Predefined library of fire hose reels

The design of fire hose reels was included in the 2019.g version of CYPEFIRE Hydraulic Systems. Now, a predefined library of 25 and 45 mm fire hose reels is included.

CYPEFIRE Pressure Systems

CYPEFIRE Pressure Systems

Design load case

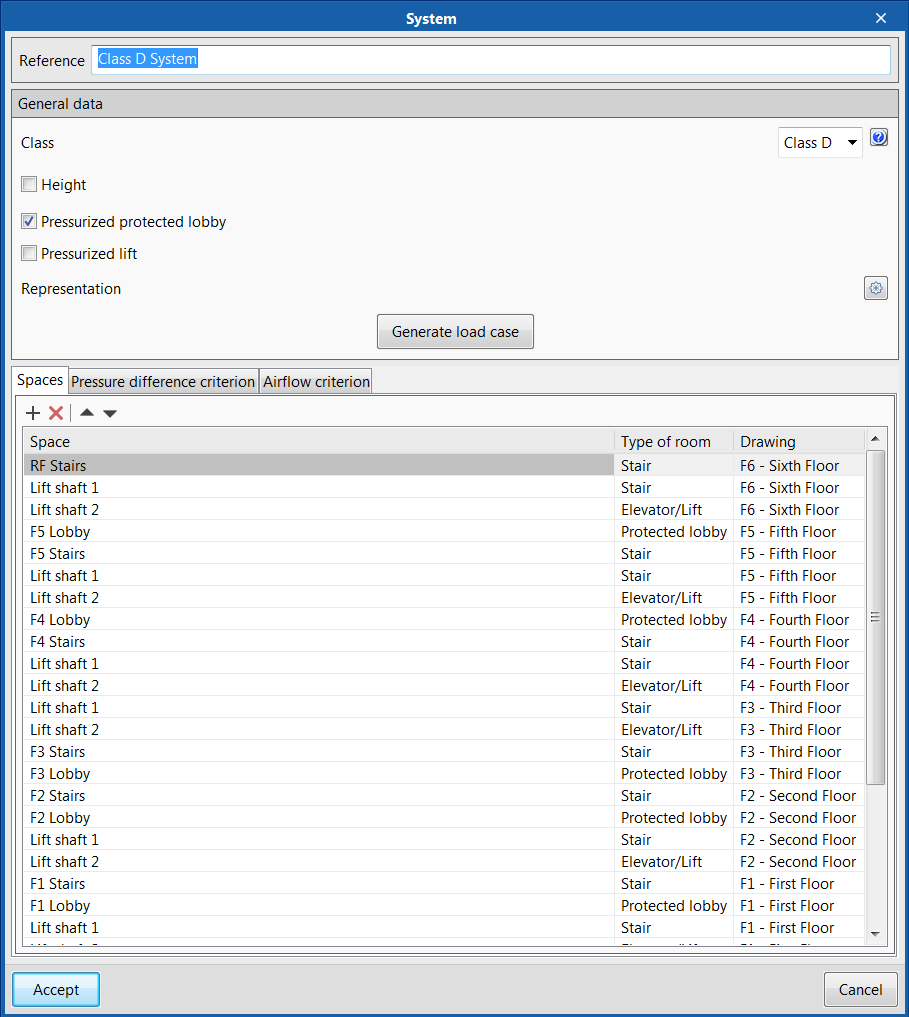

As of the 2020.e version, "CYPEFIRE Pressure Systems" includes the "Generate load case" option when a pressure system is being entered.

This new tool generates the "door open" load cases, in accordance with that indicated in the EN 12101-6 standard.

Discharge grilles

The element "Grilles" has been included and can be checked in accordance with the design code. Grilles must be entered inside stairwells for the air discharge to be uniform.

For protected lobbies, a grille must be introduced for each one.

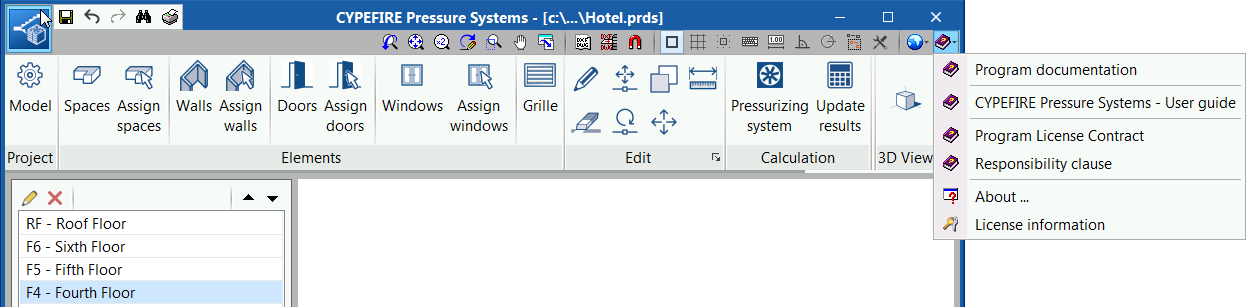

CYPEFIRE Pressure Systems. Program user guide

Program user guide

A "User guide" has been included in the application, and can be accessed from the Help menu. The guide includes basic information to get to know all the program tools and how they work.



CYPEHVAC Ductwork

CYPEHVAC Ductwork

Data introduction in a 3D workspace

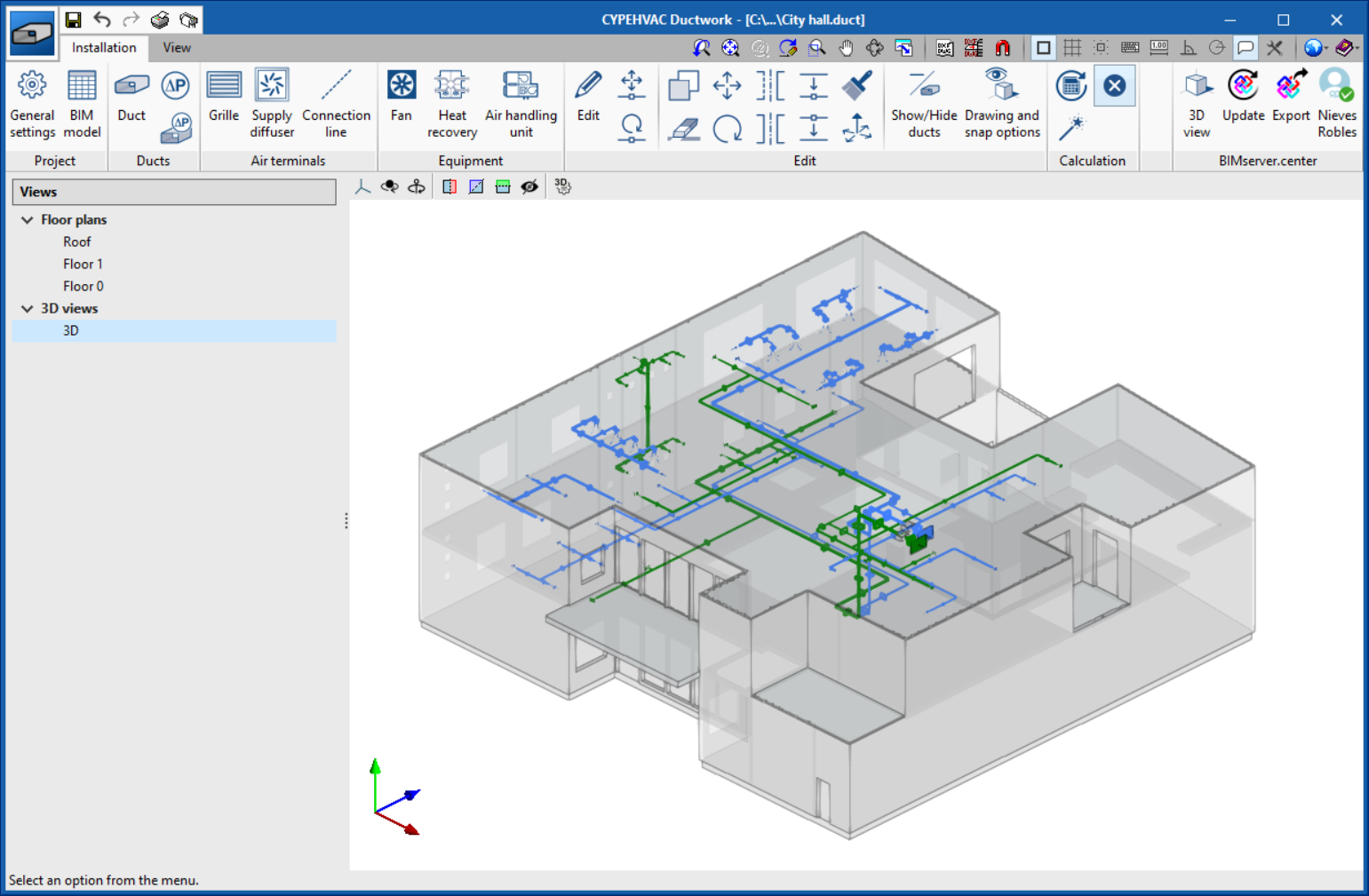

As of the 2020.e version, the workspace of CYPEHVAC Ductwork changes from a 2D to a 3D workspace. With this improvement, users can continue to work on a floor plan as if it were a 2D workspace or use the 3D view.

Bill of quantities

In the 2020.e version, the "Bill of quantities" tab has been added in "CYPEHVAC Ductwork". Now, users have tools that can be used to generate and manage the bill of quantities of the elements that have been introduced in the program.

More information on this new feature can be found in the "Bill of quantities" tab in project phase Open BIM applications section, which affects several CYPE Open BIM programs.



Return to the 2020 version download area



©CYPE Ingenieros - Av. de Loring, 4 - 03003 ALICANTE. Spain
Tel. USA (+1) 202 569 8902 // UK (+44) 20 3608 1448 // Spain (+34) 965 922 550 - Fax (+34) 965 124 950
Home | CYPE | Legal Aspects | Products | Versions | Downloads | Contact us
Bulgarian | French | Italian | Portuguese | Spanish | Spanish (Mexico) | Other dealerships
